2N7002KQB

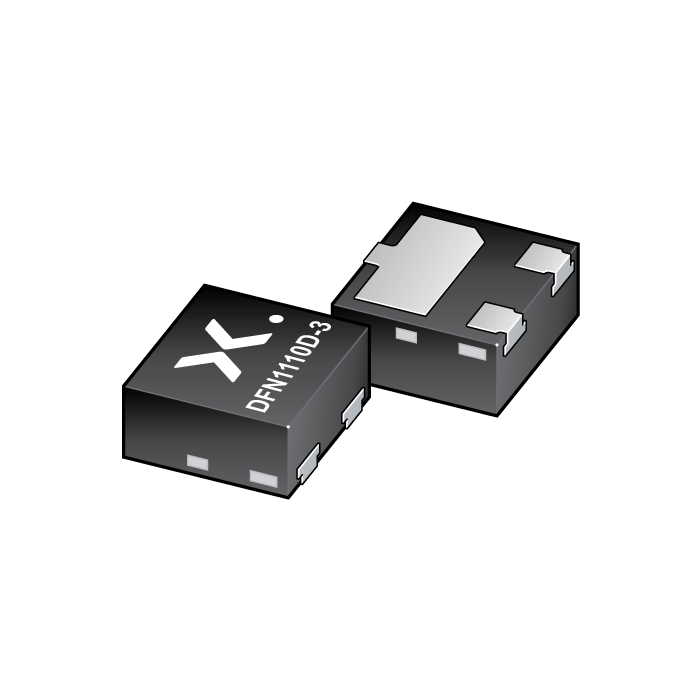

main product photo

The image is for reference only

Please refer to the product specifications

2N7002KQB
  • SKU:
    2N7002KQBZ
  • Short Description:
      channel Trench MOSFET
  • Description:


    N-channel enhancement mode Field-Effect Transistor (FET) in an ultra small DFN1110D-3 (SOT8015) leadless Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

  • Datasheet:
    Download the Datasheet
Stock: 210000
Qty:
Price: $0.0466
Total: $0.0466
Price
Qty Price Total price
1 $0.0466 $0.0466
500 $0.0423 $21.1500
1000 $0.0403 $40.3000
3000 $0.0384 $115.2000

Features

  • Logic-level compatible

  • Side wettable flanks for optical solder inspection

  • Ultra small and leadless SMD plastic package: 1.1 x 1 x 0.48 mm

  • Trench MOSFET technology

  • ElectroStatic Discharge (ESD) protection > 1 kV HBM (Class H1C)

  • AEC-Q101 qualified

Applications

  • Relay driver

  • High-speed line driver

  • Low-side load switch

  • Switching circuits

Datasheet
Download the Datasheet
