BAS16LS

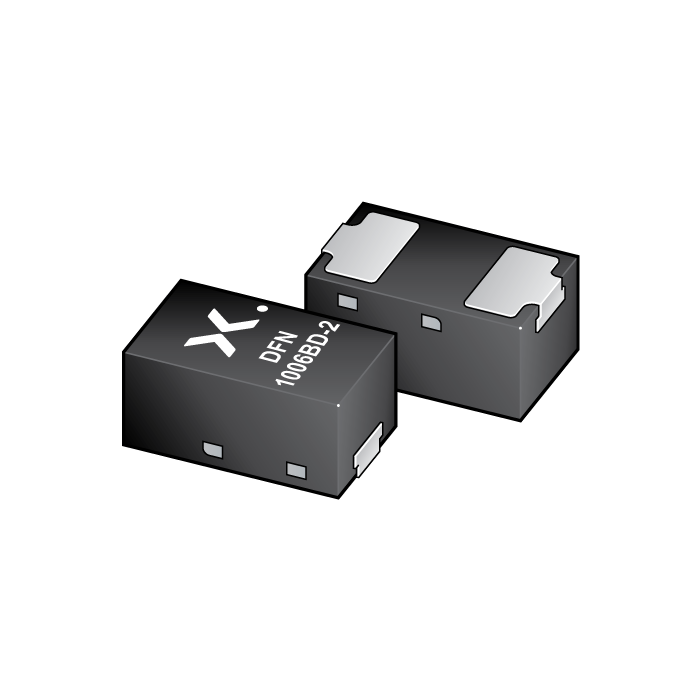

main product photo

The image is for reference only

Please refer to the product specifications

BAS16LS
  • SKU:
    BAS16LSYL
  • Date Code:
    2332+
  • Short Description:
      High-speed switching diode
  • Description:


    High-speed switching diode, encapsulated in a leadless ultra small DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks.

  • Datasheet:
    Download the Datasheet
Stock: 70000
Qty:
Price: $0.0166
Total: $0.0166
Price
Qty Price Total price
1 $0.0166 $0.0166
500 $0.0151 $7.5500
1000 $0.0144 $14.4000
3000 $0.0137 $41.1000

Features

  • High switching speed: trr ≤ 4 ns

  • Low leakage current

  • Repetitive peak reverse voltage VRRM ≤ 100 V

  • Suitable for Automatic Optical Inspection (AOI) of solder joint

  • Low capacitance

  • Reverse voltage VR ≤ 100 V

  • Ultra small and leadless SMD plastic package

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • High-speed switching

  • General-purpose switching

Datasheet
Download the Datasheet
