BAS21J

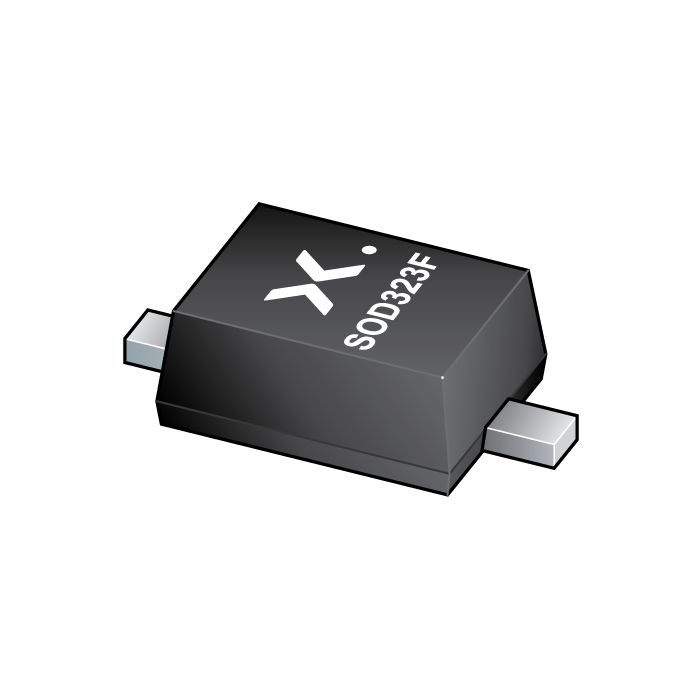

main product photo

The image is for reference only

Please refer to the product specifications

BAS21J
  • SKU:
    BAS21J-QF
  • Short Description:
      Q - Single high-speed switching diode
  • Description:


    High-speed switching diode, encapsulated in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 450000
Qty:
Price: $0.0245
Total: $0.0245
Price
Qty Price Total price
1 $0.0245 $0.0245
500 $0.0223 $11.1500
1000 $0.0213 $21.3000
3000 $0.0202 $60.6000

Features

  • High switching speed: trr ≤ 50 ns

  • Low capacitance: Cd ≤2 pF

  • Low leakage current

  • Reverse voltage: VR ≤ 300 V

  • Repetitive peak reverse voltage: VRRM ≤ 300 V

  • Very small and flat lead SMD plastic package

  • Excellent coplanarity and improved thermal behavior

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • High-speed switching

  • Voltage clamping

  • General-purpose switching

  • Reverse polarity protection

Datasheet
Download the Datasheet
