BAS21LS

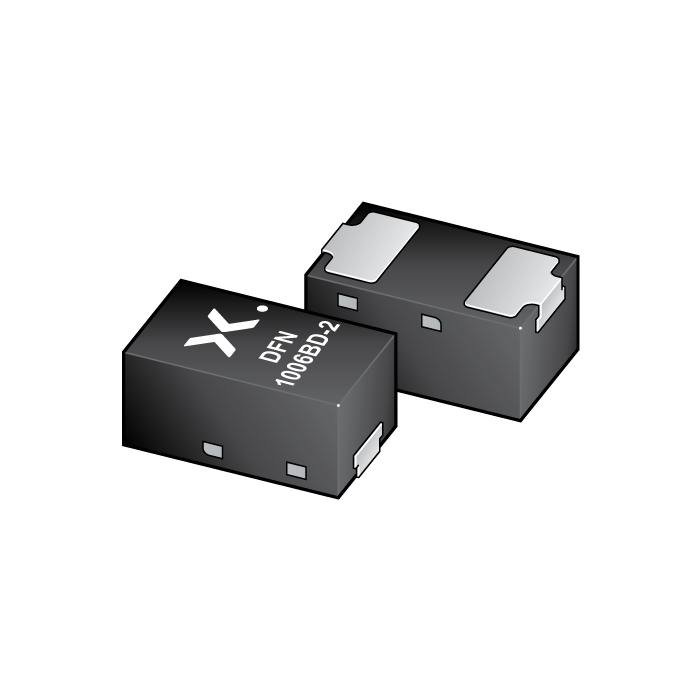

main product photo

The image is for reference only

Please refer to the product specifications

BAS21LS
  • SKU:
    BAS21LS-QYL
  • Short Description:
      Q - High-speed switching diode
  • Description:


    High-speed switching diode, encapsulated in a leadless ultra small DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks.

  • Datasheet:
    Download the Datasheet
Stock: 99999999
Qty:
Price: $0.0229
Total: $0.0229
Price
Qty Price Total price
1 $0.0229 $0.0229
500 $0.0208 $10.4000
1000 $0.0198 $19.8000
3000 $0.0189 $56.7000

Features

  • High switching speed: trr ≤ 50 ns

  • Low leakage current

  • High reverse voltage VR ≤ 200 V

  • Low capacitance: Cd ≤ 2 pF

  • Ultra small and leadless SMD plastic package

  • Suitable for Automatic Optical Inspection (AOI) of solder joint

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • High-speed switching

  • General-purpose switching

  • Voltage clamping

  • Reverse polarity protection

Datasheet
Download the Datasheet
