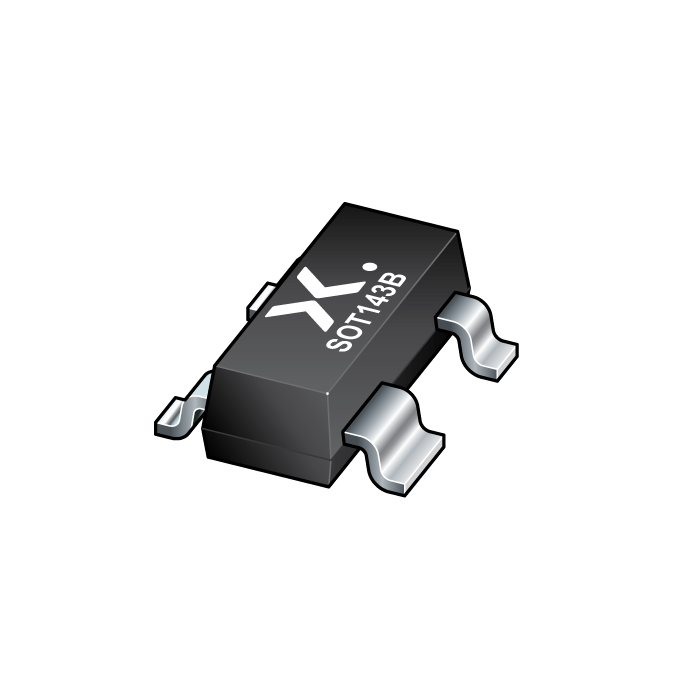

BAS56
The image is for reference only
Please refer to the product specifications
BAS56
-
SKU:
BAS56,215
-
Date Code:
2345+
-
Short Description:
High-speed double diode
-
Description:
The BAS56 consists of two high-speed switching diodes fabricated in planar technology, and encapsulated in the small rectangular plastic SMD SOT143 package. The diodes are not connected.
- Datasheet:
Stock: 1155000
Features
Small plastic SMD package
High switching speed: max. 6 ns
Continuous reverse voltage: max. 60 V
Repetitive peak reverse voltage: max. 60 V
Repetitive peak forward current: max. 600 mA.
AEC-Q101 qualified
Applications
High speed switching in e.g. surface mounted circuits.
Datasheet
