BAT46GW

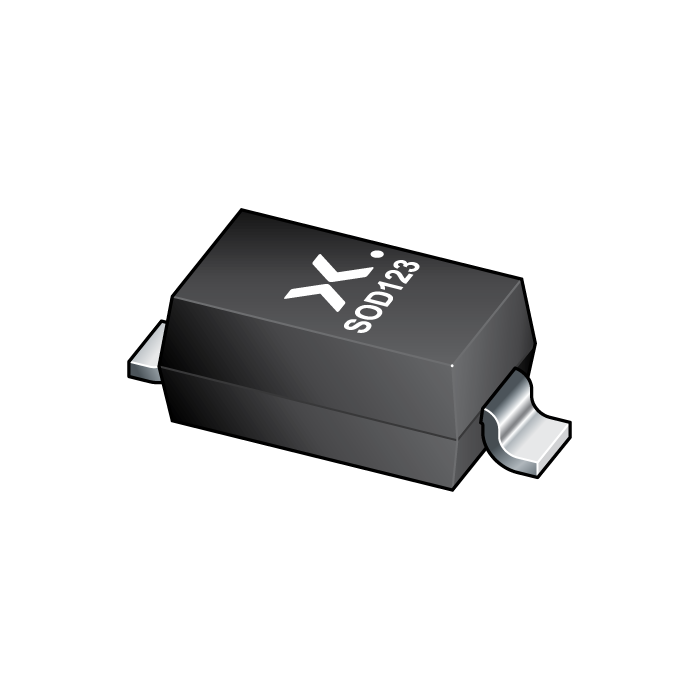

main product photo

The image is for reference only

Please refer to the product specifications

BAT46GW

SKU:
BAT46GW-QJ
Short Description:
Q - 100 V, 250 mA Schottky barrier diode
Description:

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in an SOD123 small Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 99999999

Qty:

Price: $0.025

Total: $0.025

Price

Qty Price Total price: 1 $0.025 $0.025; 500 $0.0227 $11.3500; 1000 $0.0216 $21.6000; 3000 $0.0206 $61.8000

Features

Low forward voltage: V_F ≤ 850 mV
Low leakage current: I_R ≤ 4 µA
Reverse voltage V_R ≤ 100 V
Low capacitance
Small SMD plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

High-speed switching
Line termination
Voltage clamping
Reverse polarity protection

Datasheet

Download the Datasheet
