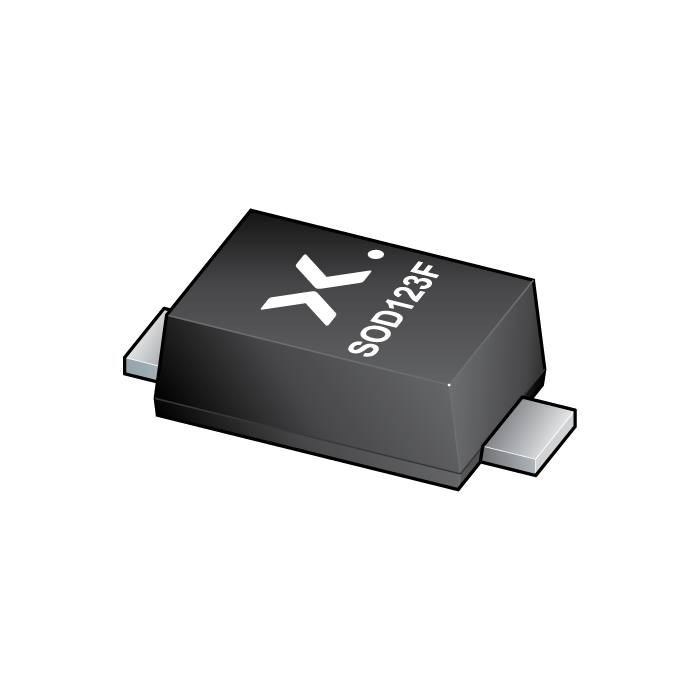

main product photo

The image is for reference only

Please refer to the product specifications

BAT46WH

SKU:
BAT46WH,115
Short Description:
Single Schottky barrier diode
Description:

Single planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small and flat lead SOD123F Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 13098000

Qty:

Price: $0.0237

Total: $0.0237

Price

Qty Price Total price: 1 $0.0237 $0.0237; 500 $0.0216 $10.8000; 1000 $0.0205 $20.5000; 3000 $0.0196 $58.8000

Features

Low forward voltage
Reverse voltage V_R ≤ 100 V
Small and flat lead SMD plastic package
Low capacitance
AEC-Q101 qualified

Applications

High-speed switching
Line termination
Voltage clamping
Reverse polarity protection

Datasheet

Download the Datasheet
