BAT46WH-QX

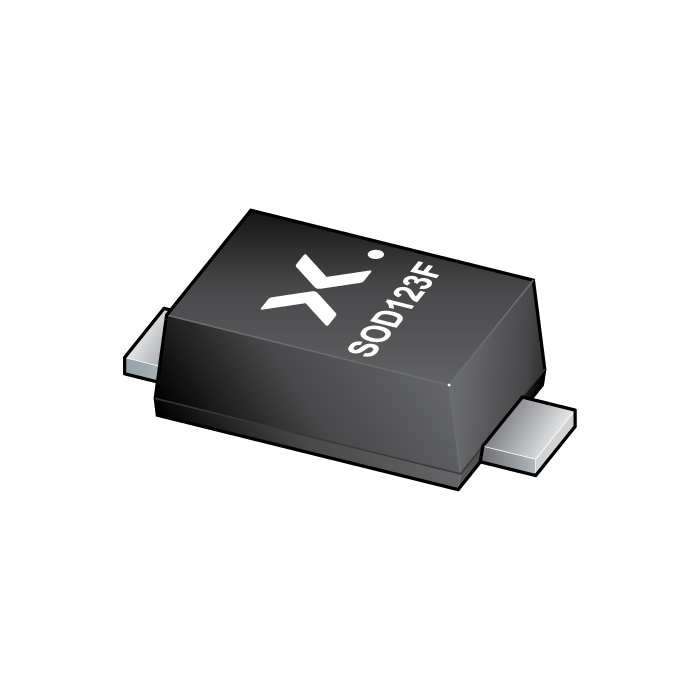

main product photo

The image is for reference only

Please refer to the product specifications

BAT46WH-QX

SKU:
BAT46WH-QX
Short Description:
Q - Schottky barrier diode
Description:

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small and flat lead SOD123F Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 2778000

Qty:

Price: $0.025

Total: $0.025

Price

Qty Price Total price: 1 $0.025 $0.025; 500 $0.0227 $11.3500; 1000 $0.0216 $21.6000; 3000 $0.0206 $61.8000

Features

Low forward voltage
Reverse voltage V_R ≤ 100 V
Small and flat lead SMD plastic package
Low capacitance
Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

High-speed switching
Line termination
Voltage clamping
Reverse polarity protection

Datasheet

Download the Datasheet
