BAT54CM

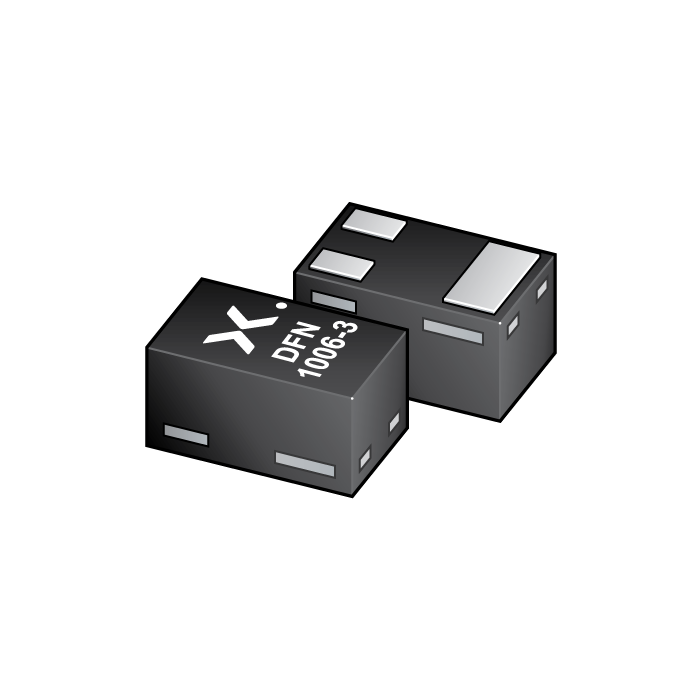

main product photo

The image is for reference only

Please refer to the product specifications

BAT54CM
  • SKU:
    BAT54CM,315
  • Date Code:
    2348+
  • Short Description:
      Schottky barrier double diode
  • Description:


    Planar Schottky barrier double diode encapsulated in a SOT883 leadless ultra small plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 840000
Qty:
Price: $0.037
Total: $0.037
Price
Qty Price Total price
1 $0.037 $0.037
500 $0.0336 $16.8000
1000 $0.032 $32.0000
3000 $0.0305 $91.5000

Features

  • Low forward voltage

  • Leadless ultra small plastic package (1.0 x 0.6 x 0.5 mm)

  • Boardspace 1.17 mm² (approx. 10pct. of SOT23)

  • Power dissipation comparable to SOT23.

  • AEC-Q101 qualified

Applications

  • Ultra high-speed switching

  • Voltage clamping

  • Protection circuits

  • Mobile communications, digital (still) cameras, PDAs and PCMCIA cards.

Datasheet
Download the Datasheet
