BAT54GW

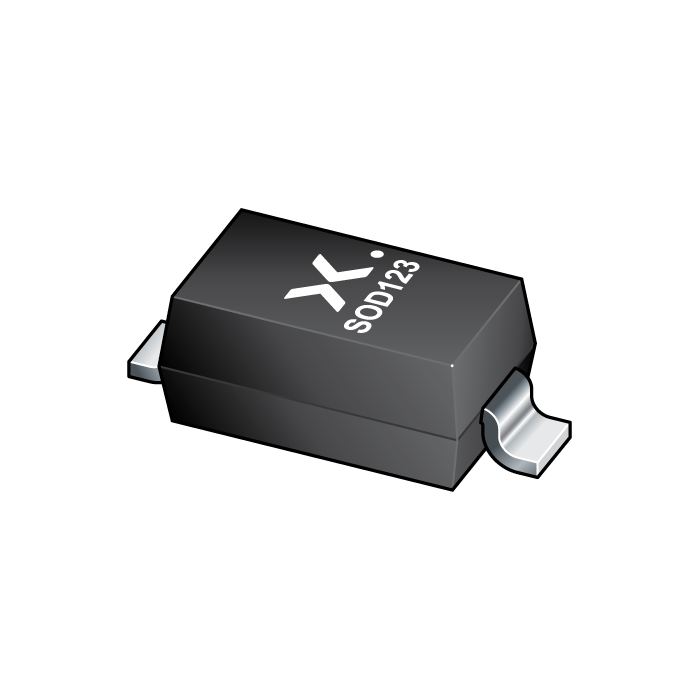

main product photo

The image is for reference only

Please refer to the product specifications

BAT54GW

SKU:
BAT54GWX
Short Description:
30 V, 200 mA Schottky barrier diode
Description:

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in an SOD123 small Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 1011000

Qty:

Price: $0.0135

Total: $0.0135

Price

Qty Price Total price: 1 $0.0135 $0.0135; 500 $0.0123 $6.1500; 1000 $0.0117 $11.7000; 3000 $0.0112 $33.6000

Features

Low forward voltage: V_F ≤ 400 mV
Low leakage current: I_R ≤ 2 µA
Reverse voltage V_R ≤ 30 V
Low capacitance
Small SMD plastic package
AEC-Q101 qualified

Applications

Ultra high-speed switching
Line termination
