BAT54H

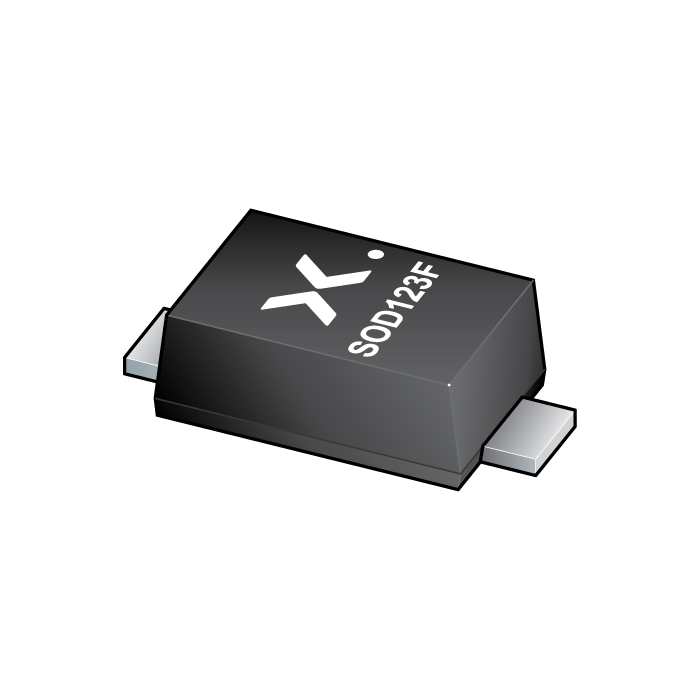

main product photo

The image is for reference only

Please refer to the product specifications

BAT54H
  • SKU:
    BAT54H,115
  • Short Description:
      Schottky barrier single diode in small SOD123F package
  • Description:


    Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 4191000
Qty:
Price: $0.0135
Total: $0.0135
Price
Qty Price Total price
1 $0.0135 $0.0135
500 $0.0123 $6.1500
1000 $0.0117 $11.7000
3000 $0.0112 $33.6000

Features

  • Low forward voltage

  • Low capacitance

Applications

  • Ultra high-speed switching

  • Voltage clamping

  • Line termination

  • Inverse-polarity protection

Datasheet
Download the Datasheet
