BAT54J

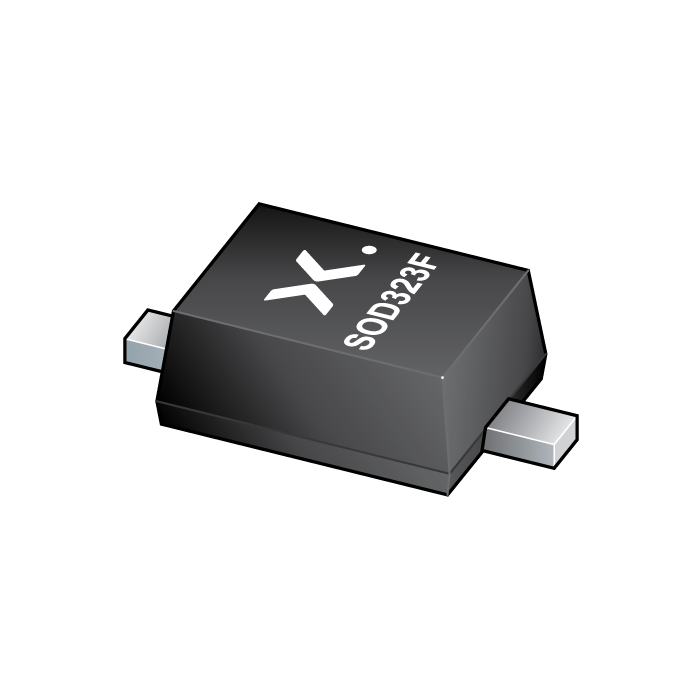

main product photo

The image is for reference only

Please refer to the product specifications

BAT54J
  • SKU:
    BAT54J,115
  • Date Code:
    2531+
  • Short Description:
      Schottky barrier single diode
  • Description:


    Planar Schottky barrier single diode with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 8061000
Qty:
Price: $0.0206
Total: $0.0206
Price
Qty Price Total price
1 $0.0206 $0.0206
500 $0.0188 $9.4000
1000 $0.0179 $17.9000
3000 $0.017 $51.0000

Features

  • Low forward voltage

  • Very small and flat lead SMD plastic package

  • Low capacitance

  • Flat leads: excellent coplanarity and improved thermal behavior

Applications

  • Voltage clamping

  • Line termination

  • Reverse polarity protection

Datasheet
Download the Datasheet
