BAT54J

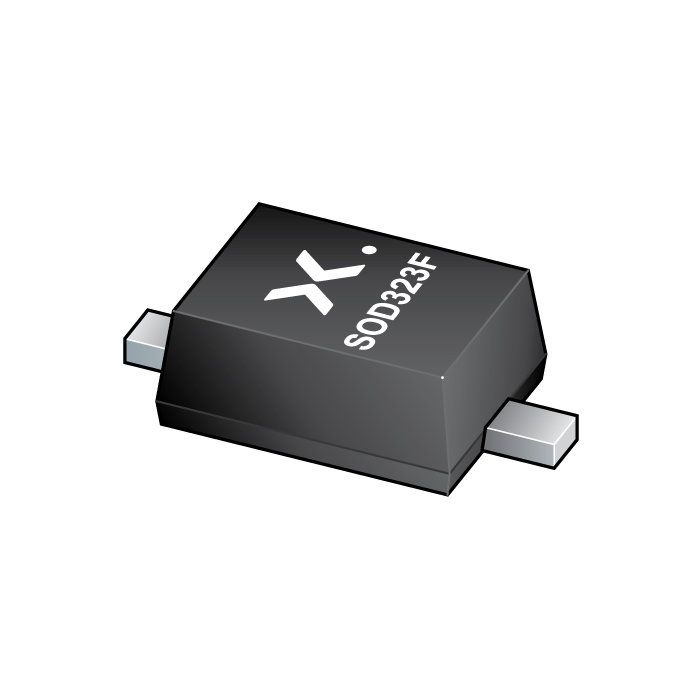

main product photo

The image is for reference only

Please refer to the product specifications

BAT54J
  • SKU:
    BAT54J-QX
  • Short Description:
      Q - Schottky barrier single diode
  • Description:


    Planar Schottky barrier single diode with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 5679000
Qty:
Price: $0.0237
Total: $0.0237
Price
Qty Price Total price
1 $0.0237 $0.0237
500 $0.0216 $10.8000
1000 $0.0205 $20.5000
3000 $0.0196 $58.8000

Features

  • Low forward voltage

  • Very small and flat lead SMD plastic package

  • Low capacitance

  • Flat leads: excellent coplanarity and improved thermal behavior

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Voltage clamping

  • Line termination

  • Reverse polarity protection

Datasheet
Download the Datasheet
