BAT54LS

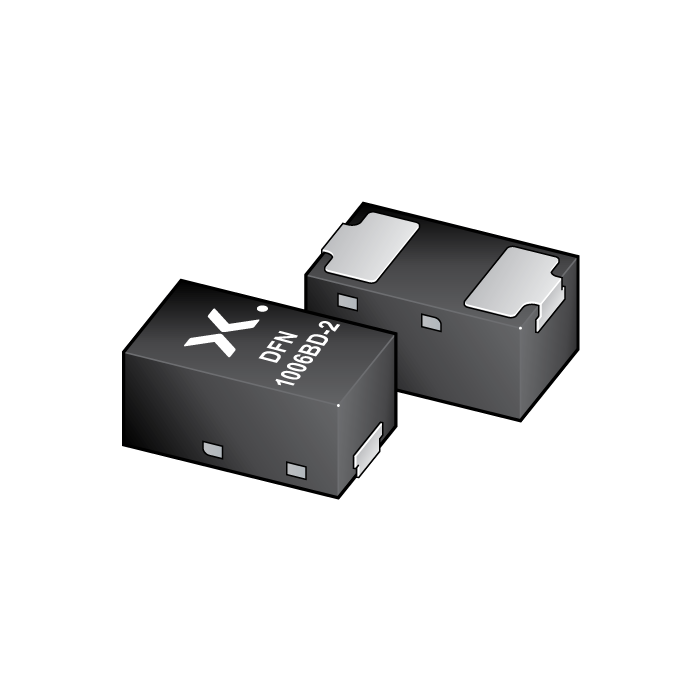

main product photo

The image is for reference only

Please refer to the product specifications

BAT54LS
  • SKU:
    BAT54LS-QYL
  • Date Code:
    2325+
  • Short Description:
      Q - Schottky barrier diode
  • Description:


    Planar Schottky barrier diode in a leadless ultra small DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks.

  • Datasheet:
    Download the Datasheet
Stock: 10000
Qty:
Price: $0.0255
Total: $0.0255
Price
Qty Price Total price
1 $0.0255 $0.0255
500 $0.0232 $11.6000
1000 $0.0221 $22.1000
3000 $0.021 $63.0000

Features

  • Low forward voltage

  • Low capacitance

  • Leadless ultra small SMD plastic package

  • Low package height of 0.5 mm

  • Suitable for Automatic Optical Inspection (AOI) of solder joint

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Ultra high-speed switching

  • Voltage clamping

  • Protection circuits

Datasheet
Download the Datasheet
