BAT74

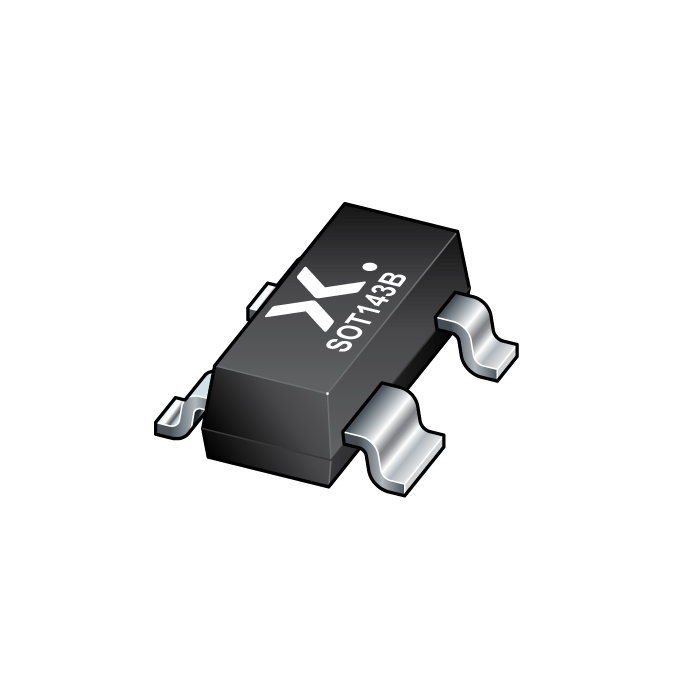

main product photo

The image is for reference only

Please refer to the product specifications

BAT74
  • SKU:
    BAT74,235
  • Short Description:
      Schottky barrier double diode
  • Description:


    Planar Schottky barrier double diode with an integrated guard ring for stress protection. Two electrically isolated Schottky barrier diodes, encapsulated in a small SOT143B Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 260000
Qty:
Price: $0.0462
Total: $0.0462
Price
Qty Price Total price
1 $0.0462 $0.0462
500 $0.042 $21.0000
1000 $0.04 $40.0000
3000 $0.0381 $114.3000

Features

  • Low forward voltage

  • Guard-ring protected

  • Small SMD plastic package

  • AEC-Q101 qualified

Applications

  • Ultra high-speed switching

  • Voltage clamping

  • Protection circuits

  • Blocking diodes

Datasheet
Download the Datasheet
