BAV170M

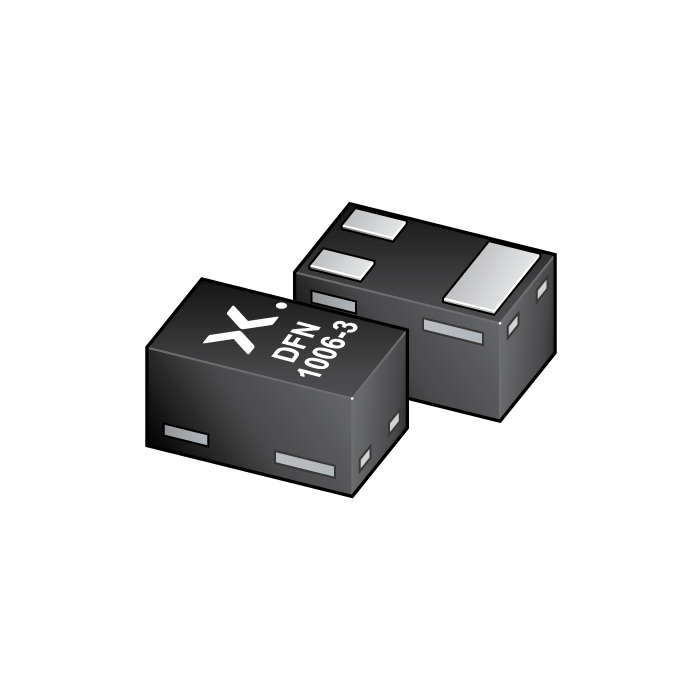

main product photo

The image is for reference only

Please refer to the product specifications

BAV170M

SKU:
BAV170MYL
Short Description:
Dual common cathode low-leakage diode
Description:

Dual common cathode low-leakage diode encapsulated in a leadless ultra small DFN1006-3 (SOT883) Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 10000

Qty:

Price: $0.0276

Total: $0.0276

Price

Qty Price Total price: 1 $0.0276 $0.0276; 500 $0.0251 $12.5500; 1000 $0.0239 $23.9000; 3000 $0.0228 $68.4000

Features

High switching speed: t_rr = 0.8 µs
Low leakage current: I_R = 3 pA
Repetitive peak reverse voltage V_RRM ≤ 85 V
Low capacitance C_d = 2 pF
Ultra small SMD plastic package
Low package height of 0.48 mm
AEC-Q101 qualified

Applications

Low-leakage current applications
General-purpose switching

Datasheet

Download the Datasheet
