BAV70SRA

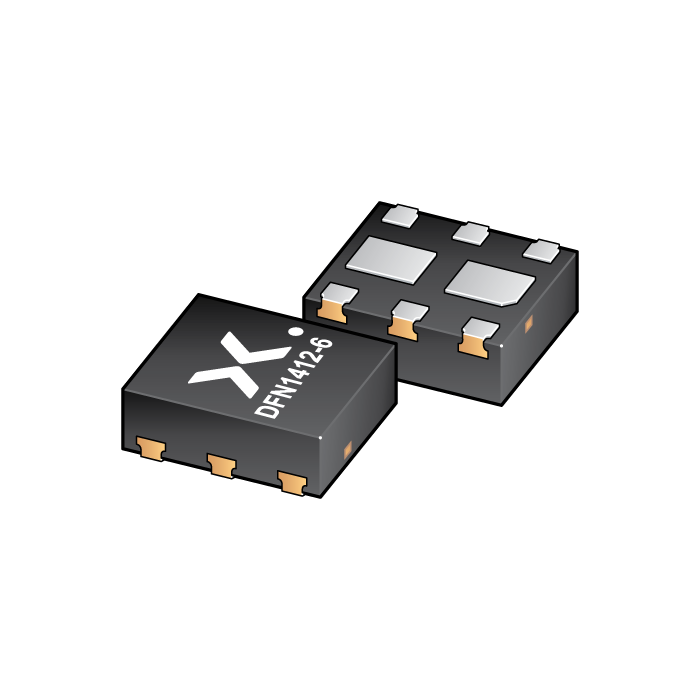

main product photo

The image is for reference only

Please refer to the product specifications

BAV70SRA

SKU:
BAV70SRAZ
Date Code:
2348+
Short Description:
Quad high-speed switching diodes
Description:

Quad high-speed switching diodes with common cathode configurations encapsulated in a leadless ultra small DFN1412-6 (SOT1268) Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 20000

Qty:

Price: $0.04

Total: $0.04

Price

Qty Price Total price: 1 $0.04 $0.04; 500 $0.0364 $18.2000; 1000 $0.0347 $34.7000; 3000 $0.033 $99.0000

Features

High switching speed: t_rr ≤ 4 ns
Low leakage current: I_R ≤ 0.5 µA
Reverse voltage V_R ≤ 100 V
Low capacitance C_d ≤ 1.5 pF
Ultra small SMD plastic package
AEC-Q101 qualified

Applications

High-speed switching
General-purpose switching

Datasheet

Download the Datasheet
