BAW56QA

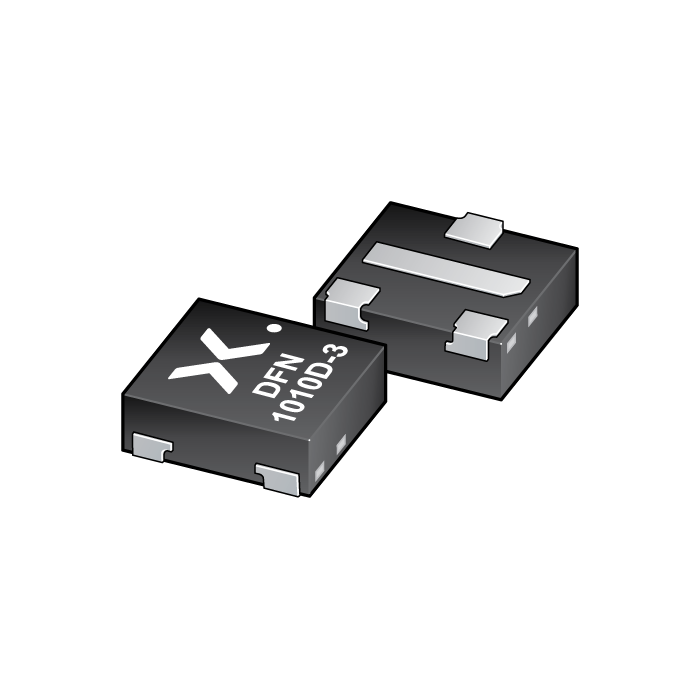

main product photo

The image is for reference only

Please refer to the product specifications

BAW56QA
  • SKU:
    BAW56QAZ
  • Short Description:
      Dual common anode high-speed switching diode
  • Description:


    Dual common anode high-speed switching diode encapsulated in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.

  • Datasheet:
    Download the Datasheet
Stock: 99999999
Qty:
Price: $0.0285
Total: $0.0285
Price
Qty Price Total price
1 $0.0285 $0.0285
500 $0.0259 $12.9500
1000 $0.0246 $24.6000
3000 $0.0235 $70.5000

Features

  • High switching speed: trr ≤ 4 ns

  • Low leakage current

  • Reverse voltage VR ≤ 90 V

  • Low capacitance Cd ≤ 2 pF

  • Ultra small SMD plastic package

  • Low package height of 0.37 mm

  • AEC-Q101 qualified

  • Suitable for Automatic Optical Inspection (AOI) of solder joint

Applications

  • High-speed switching

  • General-purpose switching

Datasheet
Download the Datasheet
