BAW56SRA

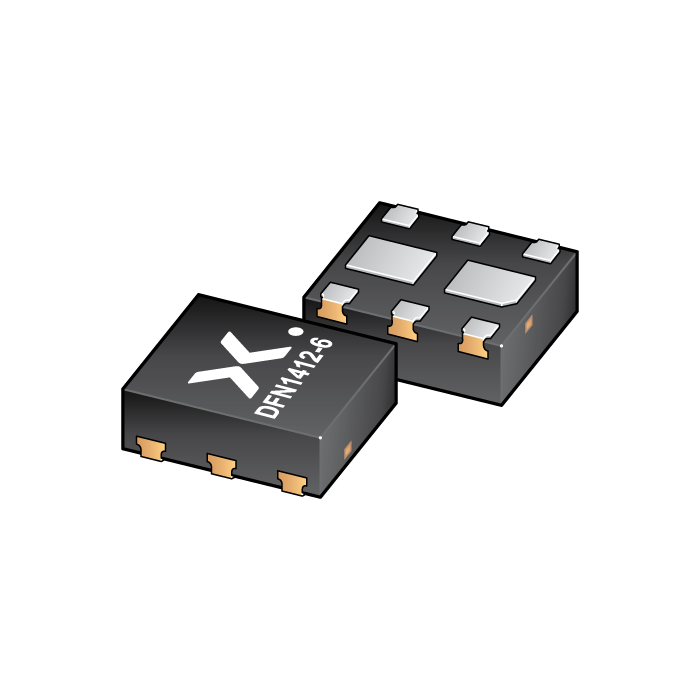

main product photo

The image is for reference only

Please refer to the product specifications

BAW56SRA

SKU:
BAW56SRA-QZ
Short Description:
Q - Quad high-speed switching diodes
Description:

Quad high-speed switching diodes with common anode configurations encapsulated in a leadless ultra small DFN1412-6 (SOT1268) Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 50000

Qty:

Price: $0.042

Total: $0.042

Price

Qty Price Total price: 1 $0.042 $0.042; 500 $0.0382 $19.1000; 1000 $0.0363 $36.3000; 3000 $0.0346 $103.8000

Features

High switching speed: t_rr ≤ 4 ns
Low leakage current
Reverse voltage V_R ≤ 90 V
Low capacitance C_d ≤ 2 pF
Ultra small SMD plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

High-speed switching
General-purpose switching

Datasheet

Download the Datasheet
