BC56xPAS series

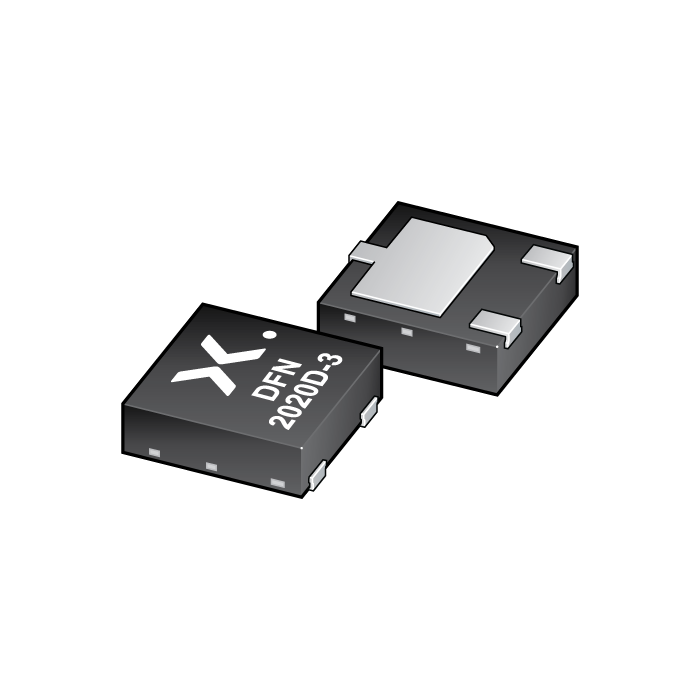

main product photo

The image is for reference only

Please refer to the product specifications

BC56xPAS series
  • SKU:
    BC56-16PASX
  • Date Code:
    2349+
  • Short Description:
      80 V, 1 A NPN medium power transistors
  • Description:


    NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.

  • Datasheet:
    Download the Datasheet
Stock: 63000
Qty:
Price: $0.0614
Total: $0.0614
Price
Qty Price Total price
1 $0.0614 $0.0614
500 $0.0558 $27.9000
1000 $0.0531 $53.1000
3000 $0.0506 $151.8000

Features

  • High collector current capability IC and ICM

  • Reduced Printed-Circuit Board (PCB) area requirements

  • Exposed heat sink for excellent thermal and electrical conductivity

  • Two current gain selections

  • Leadless very small SMD plastic package with medium power capability

  • Suitable for Automatic Optical Inspection (AOI) of solder joint

  • AEC-Q101 qualified

Applications

  • Linear voltage regulators

  • Battery driven devices

  • MOSFET drivers

  • High-side switches

  • Power management

  • Amplifiers

Datasheet
Download the Datasheet
