BC68PAS series
The image is for reference only
Please refer to the product specifications
BC68PAS series
-
SKU:
BC68-25PASX
-
Short Description:
20 V, 2 A NPN medium power transistors
-
Description:

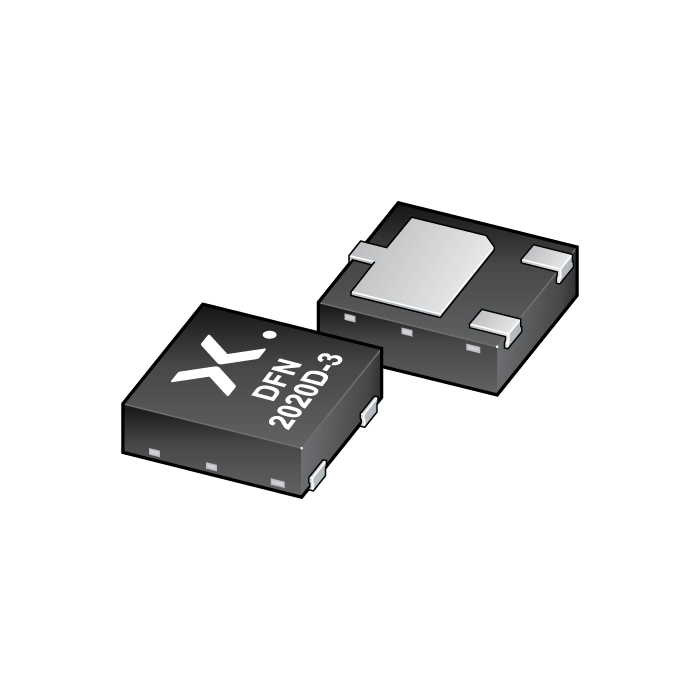

NPN medium power transistors in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.
PNP complement: BC69PAS series
- Datasheet:
Stock: 99999999
Features
High collector current capability IC and ICM
Reduced Printed-Circuit Board (PCB) area requirements
Exposed heat sink for excellent thermal and electrical conductivity
AEC-Q101 qualified
Two current gain selections
Leadless very small SMD plastic package with medium power capability
Suitable for Automatic Optical Inspection (AOI) of solder joint
Applications
Linear voltage regulators
Battery driven devices
MOSFET drivers
Low-side switches
Power management
Amplifiers
