BC807QB

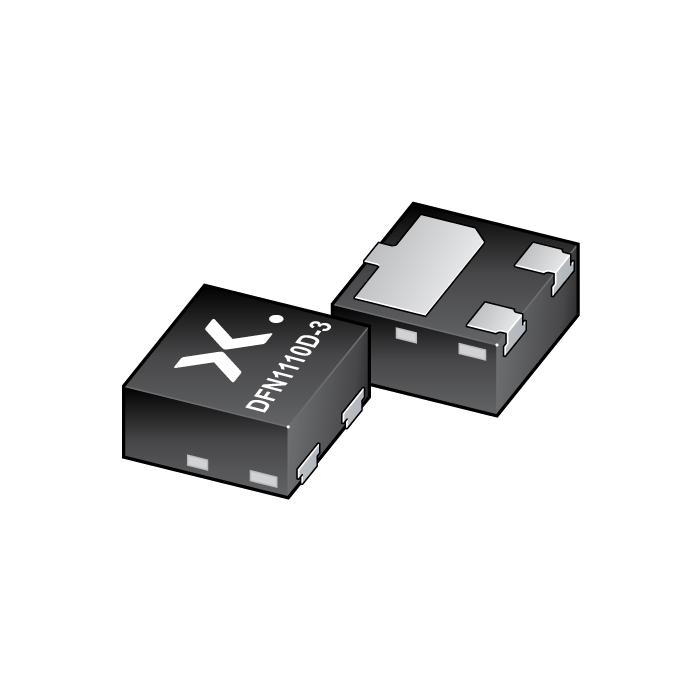

The image is for reference only
Please refer to the product specifications
BC807QB
-
SKU:
BC807-40QB-QZ
-
Short Description:
Q series - 45 V, 500 mA PNP general-purpose transistors
-
Description:
PNP general-purpose transistor in an ultra small DFN1110D-3 (SOT8015) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
Table 1. Product overview Type number
Package
NPN complement
Name
JEDEC
Version BC807-16QB-Q
DFN1110D-3 MO340-BA
SOT8015
BC817-16QB-Q
BC807-25QB-Q
BC817-25QB-Q
BC807-40QB-Q
BC817-40QB-Q
- Datasheet:
Stock: 10000
Features
High power dissipation capability
High current
Three current gain selections
Suitable for Automatic Optical Inspection (AOI) of solder joint
Smaller footprint compared to conventional leaded SMD packages
Low package height of 0.5 mm
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
General-purpose switching and amplification
Space restricted applications
