BC817QB series

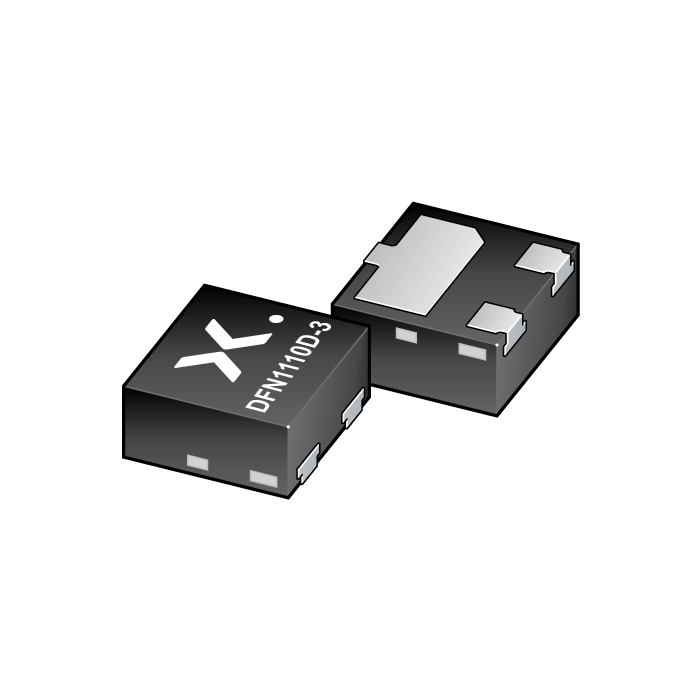

The image is for reference only
Please refer to the product specifications
BC817QB series
-
SKU:
BC817-40QBZ
-
Date Code:
2348+
-
Short Description:
45 V, 500 mA NPN general-purpose transistors
-
Description:
NPN general-purpose transistor in an ultra small DFN1110D-3 (SOT8015) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
Table 1. Product overview Type number
Package
PNP complement
Name
JEDEC
Version BC817-16QB
DFN1110D-3 MO340-BA
SOT8015
BC807-16QB
BC817-25QB
BC807-25QB
BC817-40QB
BC807-40QB
- Datasheet:
Stock: 250000
Features
High power dissipation capability
High current
Three current gain selections
Suitable for Automatic Optical Inspection (AOI) of solder joint
Smaller footprint compared to conventional leaded SMD packages
Low package height of 0.5 mm
AEC-Q101 qualified
Applications
General-purpose switching and amplification
Space restricted applications
