BC847xQB
The image is for reference only
Please refer to the product specifications
BC847xQB
-
SKU:
BC847AQB-QZ
-
Short Description:
Q series - 45 V, 100 mA NPN general-purpose transistor
-
Description:

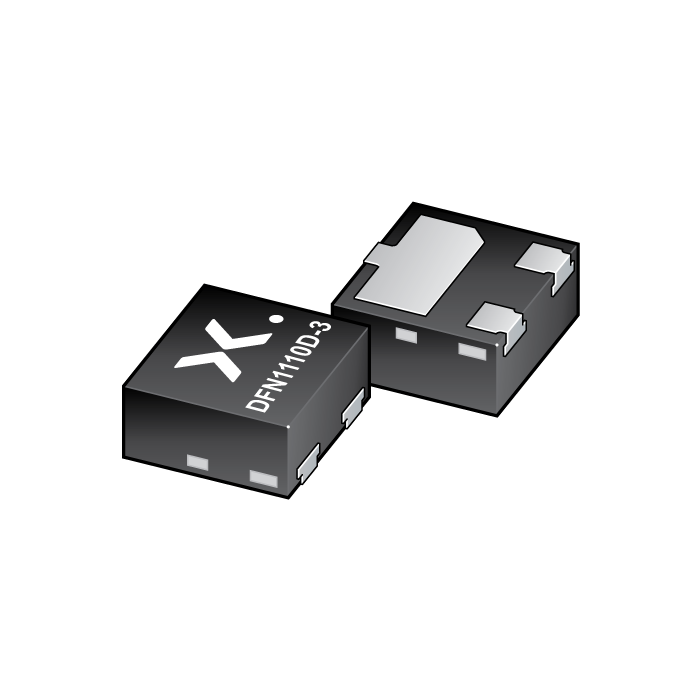

NPN general-purpose transistor in an ultra small DFN1110D-3 (SOT8015) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
Table 1. Product overview Type number
Package
PNP complement:
Nexperia
JEDEC
BC847AQB-Q
SOT8015
MO-340BA
BC857AQB-Q
BC847BQB-Q
BC857BQB-Q
BC847CQB-Q
BC857CQB-Q
- Datasheet:
Stock: 15000
Features
High power dissipation capability
- Suitable for Automatic Optical Inspection (AOI) of solder joint
- Smaller footprint compared to conventional leaded SMD packages
Low package height of 0.5 mm
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
General-purpose switching and amplification
Space restricted applications
