BCX55 series

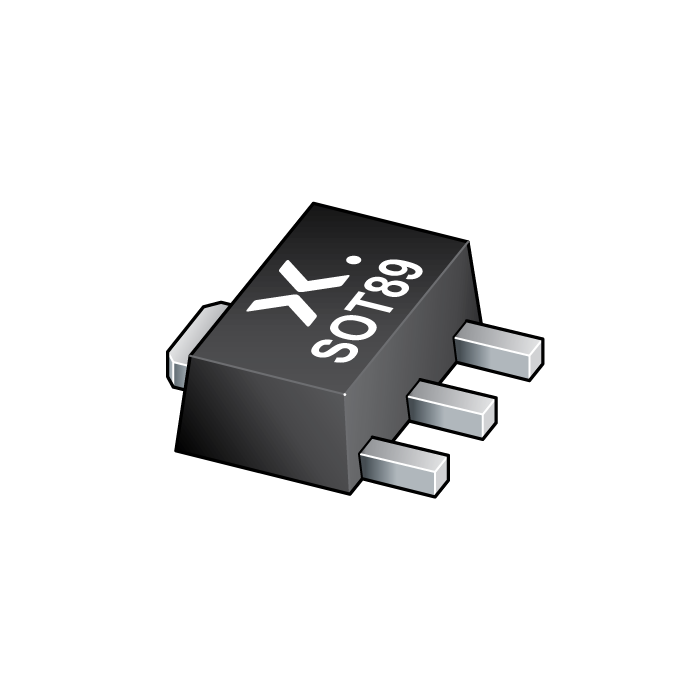

main product photo

The image is for reference only

Please refer to the product specifications

BCX55 series

SKU:
BCX55-10,115
Short Description:
60 V, 1 A NPN medium power transistors
Description:

NPN medium power transistors in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview
Type number
Package
NPN complement
Nexperia
JEITA
BCX55
SOT89
SC-62
BCX52
BCX55-10
BCX52-10
BCX55-16
BCX52-16
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 825000

Qty:

Price: $0.0481

Total: $0.0481

Price

Qty Price Total price: 1 $0.0481 $0.0481; 500 $0.0437 $21.8500; 1000 $0.0417 $41.7000; 3000 $0.0397 $119.1000

Features

High current
Three current gain selections
High power dissipation capability
Exposed heatsink for excellent thermal and electrical conductivity

Applications

Linear voltage regulators
Power management
Low-side switches
MOSFET drivers
Battery-driven devices
Amplifiers

Datasheet

Download the Datasheet
