BZT52H

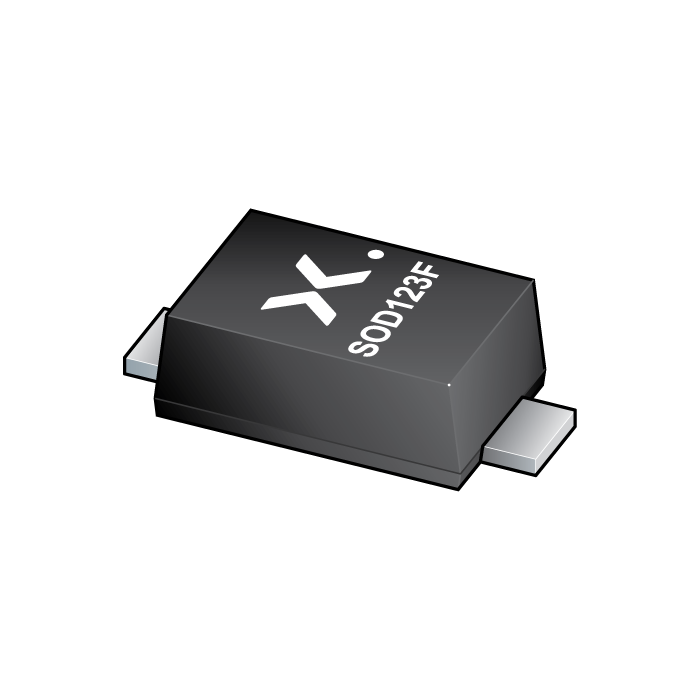

main product photo

The image is for reference only

Please refer to the product specifications

BZT52H

SKU:
BZT52H-B18-QX
Date Code:
2509+
Short Description:
Q series - Voltage regulator diodes
Description:

General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 378000

Qty:

Price: $0.0149

Total: $0.0149

Price

Qty Price Total price: 1 $0.0149 $0.0149; 500 $0.0136 $6.8000; 1000 $0.0129 $12.9000; 3000 $0.0123 $36.9000

Features

Total power dissipation: ≤ 830 mW
Three tolerance series: ±1 %, ±2 % and approximately ±5 %
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Small plastic package suitable for surface-mounted design
Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

General regulation functions

Datasheet

Download the Datasheet
