BZV49 series

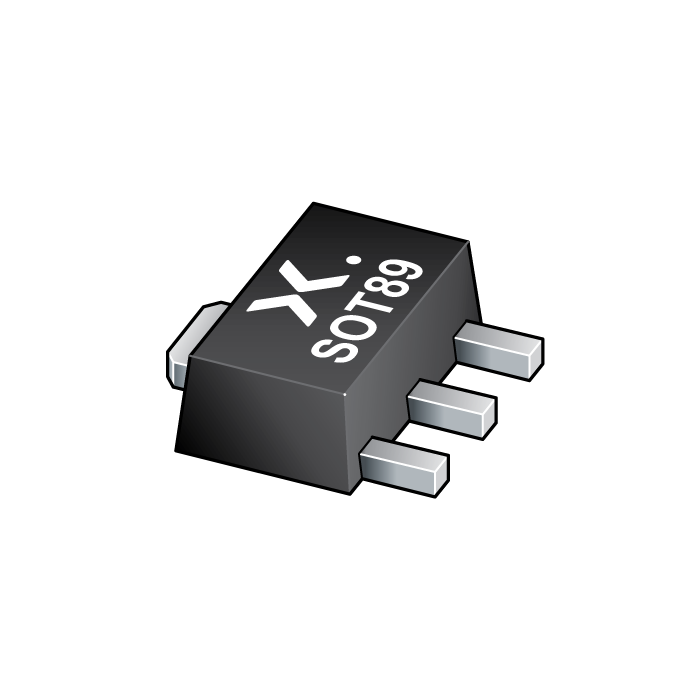

main product photo

The image is for reference only

Please refer to the product specifications

BZV49 series
  • SKU:
    BZV49-C47,115
  • Short Description:
      Voltage regulator diodes
  • Description:


    Medium-power voltage regulator diodes in a SOT89 plastic SMD package.

    The diodes are available in the normalized E24 approx. +-5pct tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V (BZV49-C2V4 to BZV49-C75).

  • Datasheet:
    Download the Datasheet
Stock: 86000
Qty:
Price: $0.1923
Total: $0.1923
Price
Qty Price Total price
1 $0.1923 $0.1923
500 $0.1748 $87.4000
1000 $0.1665 $166.5000
3000 $0.1586 $475.8000

Features

  • Total power dissipation: max. 1 W

  • Tolerance series: approx. +-5pct

  • Working voltage range: nom. 2.4 to 75 V (E24 range)

  • Non-repetitive peak reverse power dissipation: max. 40 W.

  • AEC-Q101 qualified

Applications

  • General regulation functions.

Datasheet
Download the Datasheet
