NZH series

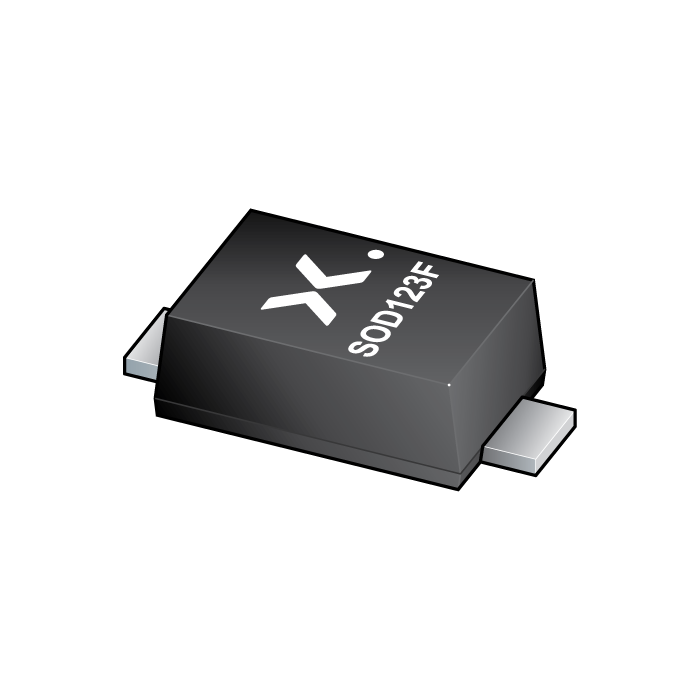

main product photo

The image is for reference only

Please refer to the product specifications

NZH series
  • SKU:
    NZH13B,115
  • Short Description:
      Single Zener diodes
  • Description:


    General-purpose Zener diodes in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 15000
Qty:
Price: $0.0272
Total: $0.0272
Price
Qty Price Total price
1 $0.0272 $0.0272
500 $0.0247 $12.3500
1000 $0.0235 $23.5000
3000 $0.0224 $67.2000

Features

  • Total power dissipation: ≤ 500 mW

  • Small plastic package suitable for surface-mounted design

  • Wide working voltage range

  • Low differential resistance

  • AEC-Q101 qualified

Applications

General regulation functions

Datasheet
Download the Datasheet
