PBHV8540X

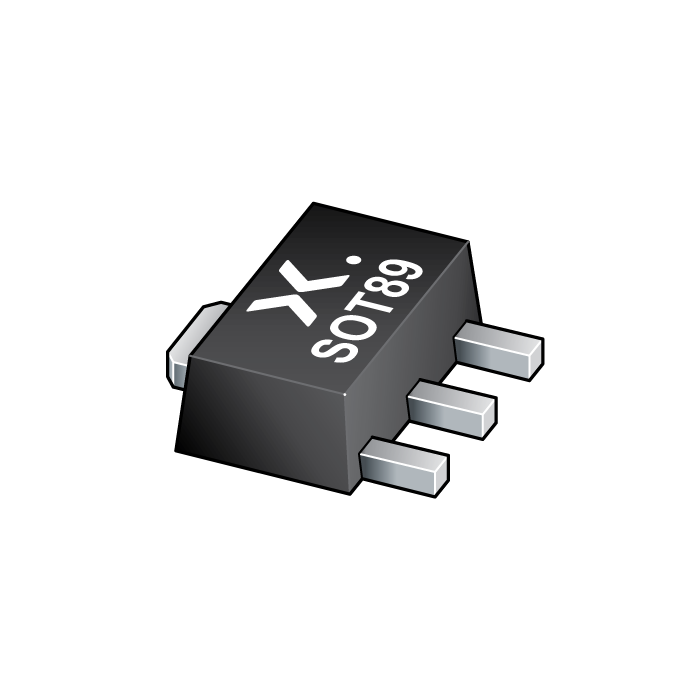

main product photo

The image is for reference only

Please refer to the product specifications

PBHV8540X
  • SKU:
    PBHV8540X,115
  • Short Description:
      500 V, 0.5 A NPN high-voltage low VCEsat transistor
  • Description:


    NPN high-voltage low VCEsat transistor in a SOT89 (SC-62) medium power and flat lead Surface-Mounted Device (SMD) plastic package.

    PNP complement: PBHV9040X

  • Datasheet:
    Download the Datasheet
Stock: 325000
Qty:
Price: $0.1464
Total: $0.1464
Price
Qty Price Total price
1 $0.1464 $0.1464
500 $0.1331 $66.5500
1000 $0.1268 $126.8000
3000 $0.1208 $362.4000

Features

  • High voltage

  • Low collector-emitter saturation voltage VCEsat

  • High collector current capability IC and ICM

  • High collector current gain hFE at high IC

  • AEC-Q101 qualified

Applications

  • LED driver for LED chain module

  • LCD backlighting

  • Automotive motor management

  • Hook switch for wired telecom

  • Switch Mode Power Supply (SMPS)

Datasheet
Download the Datasheet
