PBHV9540X

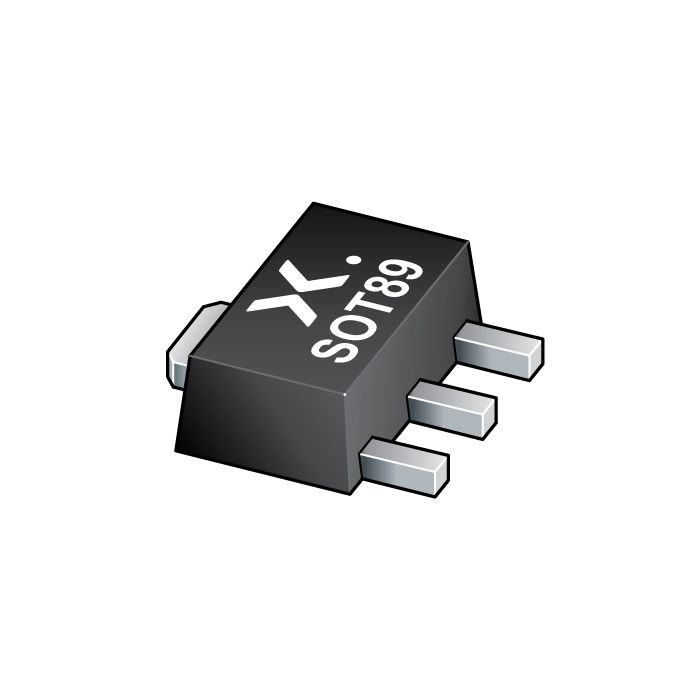

main product photo

The image is for reference only

Please refer to the product specifications

PBHV9540X
  • SKU:
    PBHV9540XF
  • Short Description:
      400 V, 0.5 A PNP high-voltage low VCEsa transistor
  • Description:


    PNP high-voltage low VCEsat transistor in a SOT89 (SC-62) medium power and flat lead Surface-Mounted Device (SMD) plastic package.

    NPN complement: PBHV8540X

  • Datasheet:
    Download the Datasheet
Stock: 99999999
Qty:
Price: $0.1492
Total: $0.1492
Price
Qty Price Total price
1 $0.1492 $0.1492
500 $0.1357 $67.8500
1000 $0.1292 $129.2000
3000 $0.1231 $369.3000

Features

  • High voltage

  • Low collector-emitter saturation voltage VCEsat

  • High collector current capability IC and ICM

  • High collector current gain hFE at high IC

  • AEC-Q101 qualified

Applications

Datasheet
Download the Datasheet
