PBSS304NX

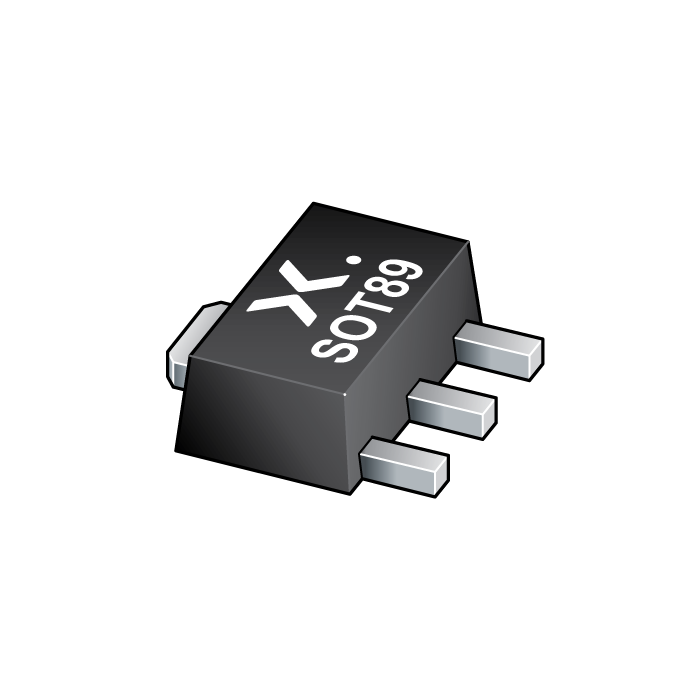

main product photo

The image is for reference only

Please refer to the product specifications

PBSS304NX
  • SKU:
    PBSS304NX-QX
  • Short Description:
      Q - 60 V, 4.7 A NPN low VCEsat transistor
  • Description:


    NPN low VCEsat transistor in a SOT89 (SC-62/TO-243) small and flat lead Surface-Mounted Device (SMD) plastic package.

    PNP complement: PBSS304PX-Q

  • Datasheet:
    Download the Datasheet
Stock: 35000
Qty:
Price: $0.2261
Total: $0.2261
Price
Qty Price Total price
1 $0.2261 $0.2261
500 $0.2055 $102.7500
1000 $0.1957 $195.7000
3000 $0.1864 $559.2000

Features

  • Low collector-emitter saturation voltage VCEsat

  • High collector current capability IC and ICM

  • High collector current gain (hFE) at high IC

  • High efficiency due to less heat generation

  • Smaller required Printed-Circuit Board (PCB) area than for conventional transistors

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • High-voltage DC-to-DC conversion

  • High-voltage MOSFET gate driving

  • High-voltage motor control

  • High-voltage power switches (e.g. motors, fans)

  • Automotive applications

Datasheet
Download the Datasheet
