PBSS4041NX

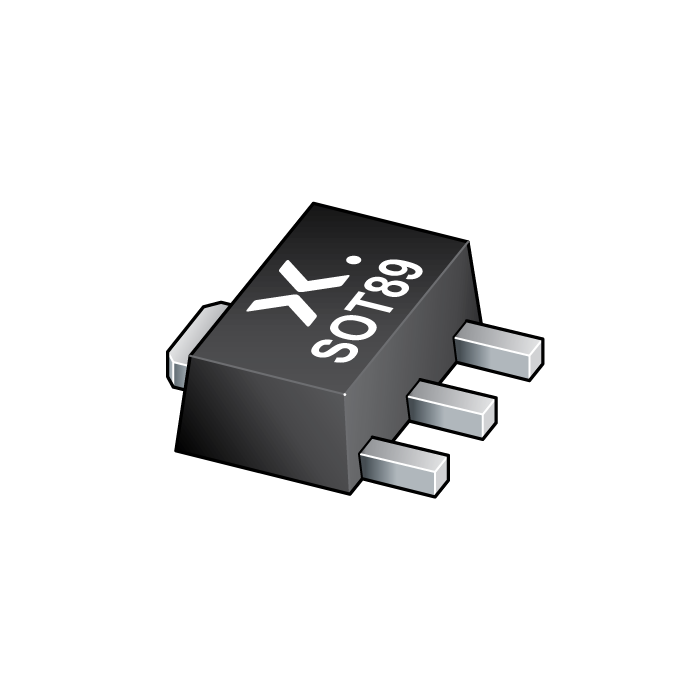

main product photo

The image is for reference only

Please refer to the product specifications

PBSS4041NX
  • SKU:
    PBSS4041NX,115
  • Short Description:
      60 V, 6.2 A NPN low VCEsat transistor
  • Description:


    NPN low VCEsat Breakthrough In Small Signal (BISS) transistor in a medium power and flat lead SOT89 (SC-62) Surface-Mounted Device (SMD) plastic package.

    PNP complement: PBSS4041PX.

  • Datasheet:
    Download the Datasheet
Stock: 11943000
Qty:
Price: $0.2307
Total: $0.2307
Price
Qty Price Total price
1 $0.2307 $0.2307
500 $0.2097 $104.8500
1000 $0.1997 $199.7000
3000 $0.1902 $570.6000

Features

  • Very low collector-emitter saturation voltage VCEsat

  • High collector current capability IC and ICM

  • High collector current gain (hFE) at high IC

  • High energy efficiency due to less heat generation

  • Smaller required Printed-Circuit Board (PCB) area than for conventional transistors

Applications

  • Loadswitch

  • Battery-driven devices

  • Power management

  • Charging circuits

  • Power switches (e.g. motors, fans)

Datasheet
Download the Datasheet
