PBSS4130PANP

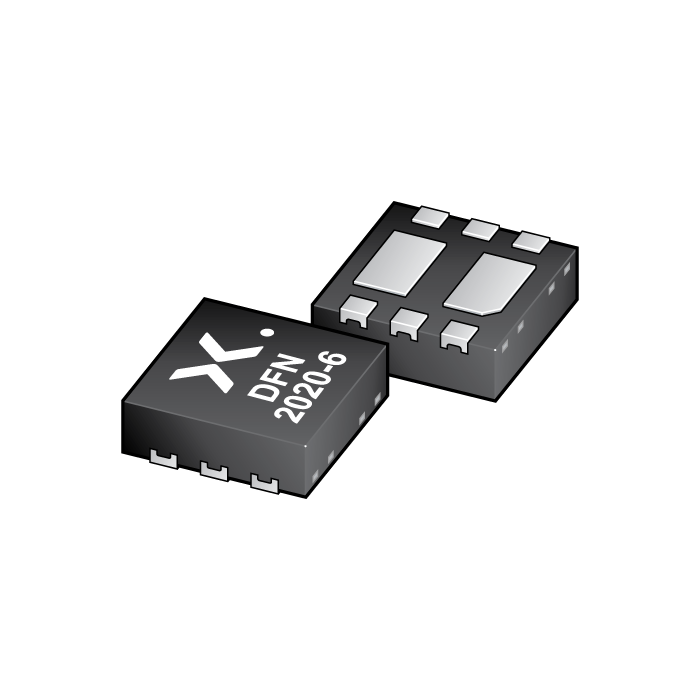

main product photo

The image is for reference only

Please refer to the product specifications

PBSS4130PANP
  • SKU:
    PBSS4130PANP,115
  • Date Code:
    2332+
  • Short Description:
      30 V, 1 A NPN/PNP low VCEsat (BISS) transistor
  • Description:

  • Datasheet:
    Download the Datasheet
Stock: 12000
Qty:
Price: $0.1595
Total: $0.1595
Price
Qty Price Total price
1 $0.1595 $0.1595
500 $0.145 $72.5000
1000 $0.1381 $138.1000
3000 $0.1316 $394.8000

Features

  • Very low collector-emitter saturation voltage VCEsat

  • High collector current capability IC and ICM

  • High collector current gain hFE at high IC

  • Reduced Printed-Circuit Board (PCB) requirements

  • High efficiency due to less heat generation

  • AEC-Q101 qualified

Applications

  • Load switch

  • Battery-driven devices

  • Power management

  • Charging circuits

  • Power switches (e.g. motors, fans)

Datasheet
Download the Datasheet
