PBSS5520X

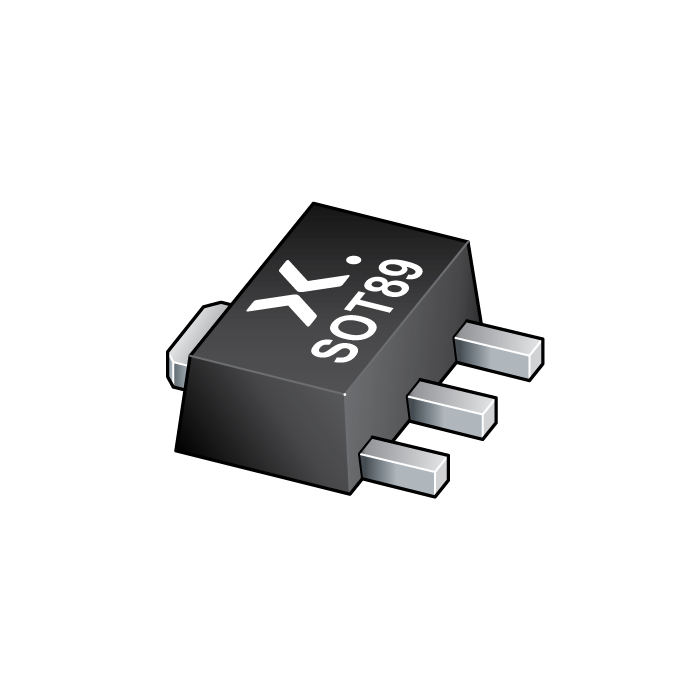

main product photo

The image is for reference only

Please refer to the product specifications

PBSS5520X
  • SKU:
    PBSS5520X,135
  • Short Description:
      20 V, 5 A PNP low VCEsat (BISS) transistor
  • Description:


    PNP low VCEsat(BISS) transistor in a SOT89 (SC-62) plastic package.

    NPN complement: PBSS4520X.

  • Datasheet:
    Download the Datasheet
Stock: 292000
Qty:
Price: $0.1322
Total: $0.1322
Price
Qty Price Total price
1 $0.1322 $0.1322
500 $0.1202 $60.1000
1000 $0.1145 $114.5000
3000 $0.109 $327.0000

Features

  • High hFE and low VCEsat at high current operation

  • High collector current IC : 5 A

  • High efficiency leading to less heat generation.

  • AEC-Q101 qualified

Applications

  • Medium power peripheral drivers (e.g. fans and motors)

  • Strobe flash units for digital still cameras and mobile phones

  • Power switch for LAN and ADSL systems

  • Medium power DC-to-DC conversion

  • Battery chargers

  • Supply line switching.

Datasheet
Download the Datasheet
