PDTC115E series

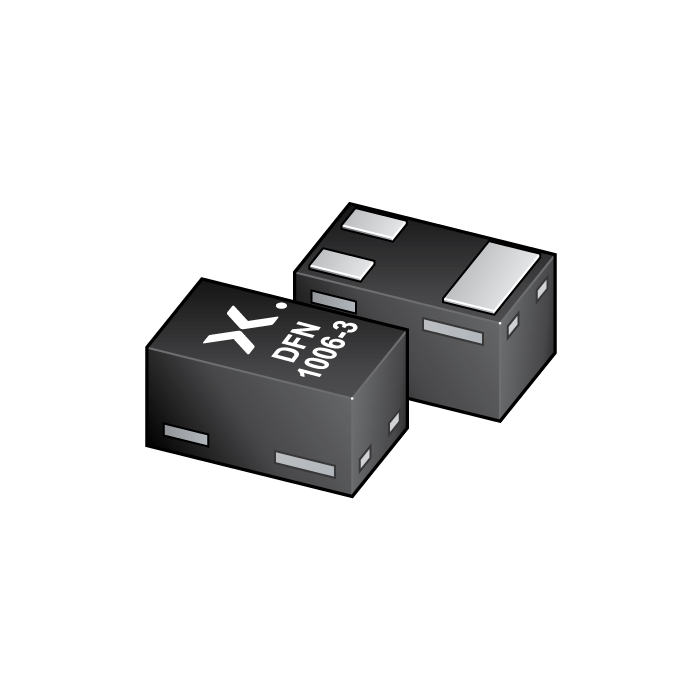

main product photo

The image is for reference only

Please refer to the product specifications

PDTC115E series
  • SKU:
    PDTC115EM,315
  • Date Code:
    2345+
  • Short Description:
      NPN resistor-equipped transistors; R1 = 100 kOhm, R2 = 100 kOhm
  • Description:


    NPN resistor equipped transistor (see �Simplified outline, symbol and pinning� for package details).

  • Datasheet:
    Download the Datasheet
Stock: 10000
Qty:
Price: $0.0237
Total: $0.0237
Price
Qty Price Total price
1 $0.0237 $0.0237
500 $0.0216 $10.8000
1000 $0.0205 $20.5000
3000 $0.0196 $58.8000

Features

  • Built-in bias resistors

  • Simplified circuit design

  • Reduction of component count

  • Reduced pick and place costs.

  • AEC-Q101 qualified

Applications

  • General purpose switching and amplification

  • Inverter and interface circuits

  • Circuit driver.

Datasheet
Download the Datasheet
