PDTC123YQB
The image is for reference only
Please refer to the product specifications
PDTC123YQB
-
SKU:
PDTC123YQB-QZ
-
Short Description:
Q - 50 V, 100 mA NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2: 10 kΩ
-
Description:

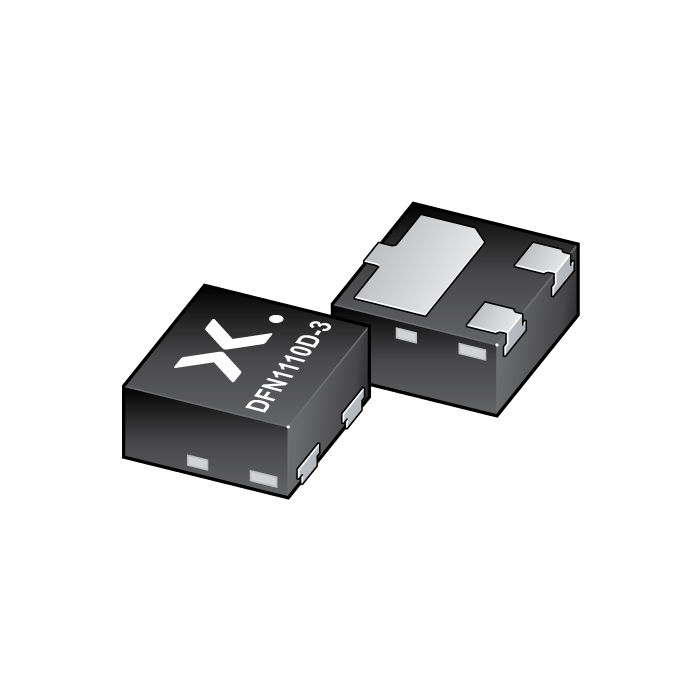

100 mA NPN Resistor-Equipped Transistor (RET) in an ultra small DFN1110D-3 (SOT8015) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
PNP complement: PDTA123YQB-Q
- Datasheet:
Stock: 99999999
Features
100 mA output current capability
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
Suitable for Automatic Optical Inspection (AOI) of solder joint
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Digital applications
Cost saving alternative for BC847 series in digital applications
Controlling IC inputs
Switching loads
