PDTD113ZQAZ
-
Short Description:
50 V, 500 mA NPN resistor-equipped transistors
-
Description:

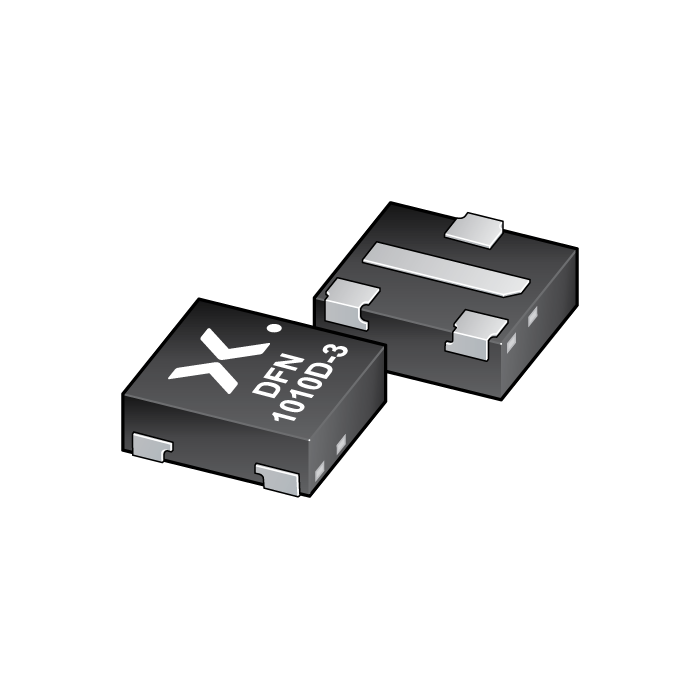

NPN Resistor-Equipped Transistor (RET) family in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
Table 1. Product overview Type number
R1
R2
Package Nexperia
NPN complement
PDTD113ZQA
1 kΩ
10 kΩ
DFN1010D-3
(SOT1215)
PDTB113ZQA
PDTD123YQA
2.2 kΩ
10 kΩ
PDTB123YQA
PDTD143XQA
4.7 kΩ
10 kΩ
PDTB143XQA
- Datasheet:
Features
500 mA output current capability
Built-in bias resistors
± 10% resistor ratio tolerance
Simplifies circuit design
Reduces component count
Reduced pick and place costs
Low package height of 0.37 mm
Suitable for Automatic Optical Inspection (AOI) of solder joint
AEC-Q101 qualified
Applications
Digital applications
Cost saving alternative for BC807/BC817 series in digital applications
Controlling IC inputs
Switching loads
