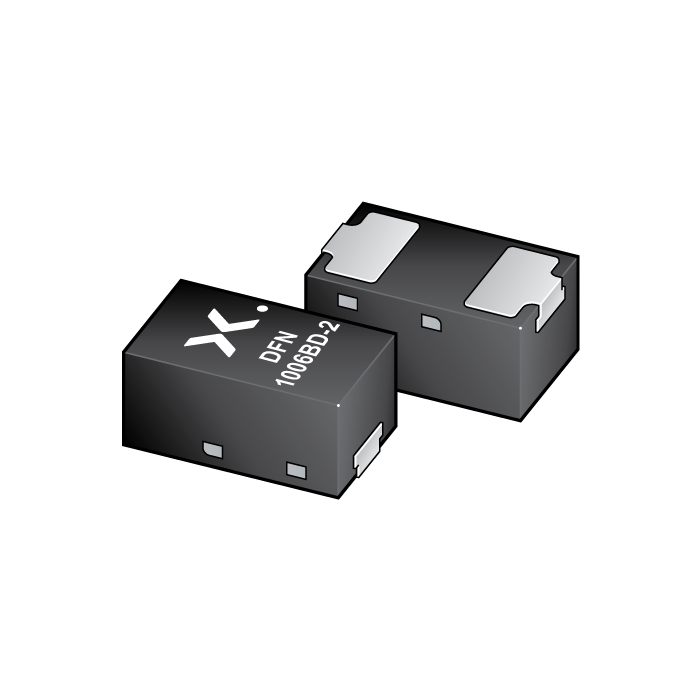

The image is for reference only
Please refer to the product specifications
-
SKU:
PESD1ETH1GLS-QYL
-
Date Code:
2348+
-
Short Description:
Q - ESD protection for In-vehicle networks
-
Description:
Fully OPEN Alliance IEEE 100BASE-T1 and 1000BASE-T1 compliant ElectroStatic Discharge (ESD) protection device in a small DFN1006BD-2 (SOD882BD) surface-mounted plastic package, designed to protect one automotive in-vehicle network bus line from the damage caused by ESD and other transients.
- Datasheet:
Features
Fully OPEN Alliance IEEE 100BASE-T1 and 1000BASE-T1 compliant
High trigger voltage: Vt1 = 100 V min
Low capacitance: Cd < 1.8 pF
ESD protection up to 30 kV (IEC 61000-4-2; ISO10605)
1000 contact discharges (OPEN Alliance specification) with 15 kV (IEC 61000-4-2)
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
ESD protection for In-vehicle network lines in automotive environments
OPEN Alliance IEEE 100/1000BASE-T1 Ethernet
Low-Voltage Differential Signaling (LVDS) automotive
