PESD24VS1ULD

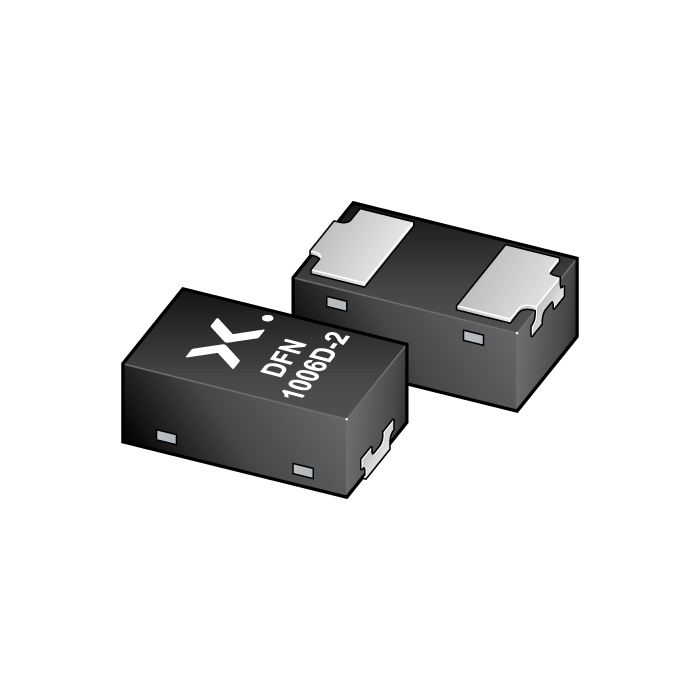

The image is for reference only
Please refer to the product specifications
PESD24VS1ULD
-
SKU:
PESD24VS1ULD,315
-
Date Code:
2524+
-
Short Description:
Unidirectional ESD protection diode
-
Description:
Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- Datasheet:
Stock: 910000
Features
ESD protection of one line
ESD protection up to 23 kV
Ultra small SMD plastic package
IEC 61000-4-2; level 4 (ESD)
Solderable side pads
IEC 61000-4-5 (surge); IPP = 3 A
Package height typ. 0.37 mm
Max. peak pulse power: PPPM = 150 W
Low clamping voltage: VCL = 70 V
Ultra low leakage current: IRM < 1 nA
Applications
Computers and peripherals
Communication systems
Audio and video equipment
Portable electronics
