SKU:
PESD24VS1ULD-QYL
-
Short Description:
Q - Unidirectional ESD protection diode
-
Description:

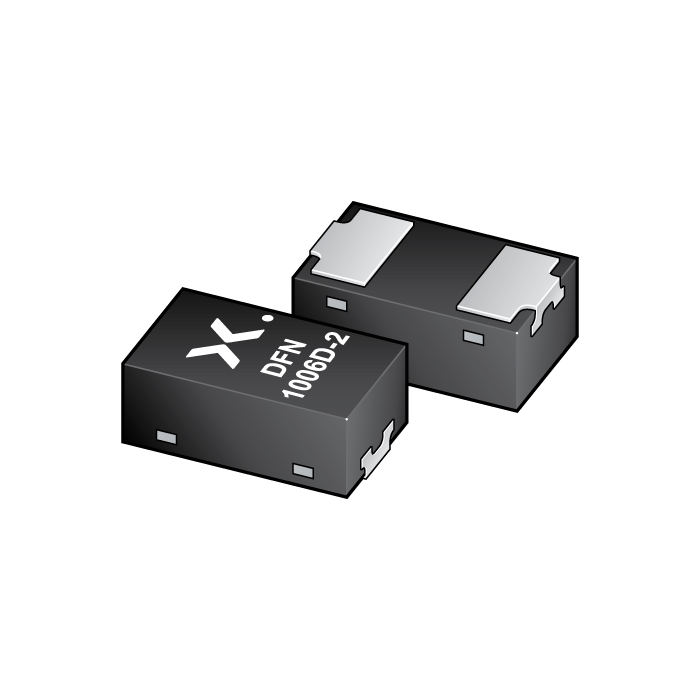

Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- Datasheet:
Features
ESD protection of one line
ESD protection up to 23 kV
Ultra small SMD plastic package
IEC 61000-4-2; level 4 (ESD)
Solderable side pads
IEC 61000-4-5 (surge); IPP = 3A
Package height typ. 0.37 mm
Max. peak pulse power: PPPM = 150 W
Low clamping voltage: VCL = 70 V
Max. peak pulse power: PPPM = 150 W
Ultra low leakage current: IRM < 1 nA
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Computers and peripherals
Communication systems
Audio and video equipment
Portable electronics
