SKU:
PESD2ETH-AXR
-
Date Code:
2506+
-
Short Description:
AX - Ultra low capacitance double rail-to-rail ESD protection diode
-
Description:

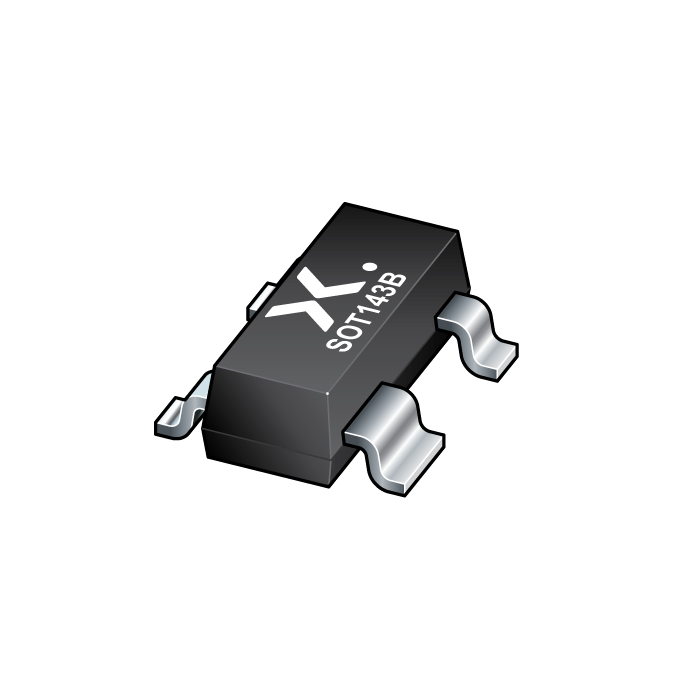

Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT143B Surface-Mounted Device (SMD) plastic package.
The device is designed to protect two high-speed data lines or high-frequency signal lines from the damage caused by ESD and other transients.
The device integrates two ultra low capacitance rail-to-rail diodes and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available.
- Datasheet:
Features
ESD protection of two high-speed data lines
Ultra low capacitance: Cd = 1.8 pF
IEC 61000-4-2 up to 12 kV
ISO 10605 (330 pF, 2 kΩ) up to 15 kV
Very low reverse current
Applications
100BASE-T1 Ethernet
Low-Voltage Differential Signaling (LVDS)
USB 2.0
