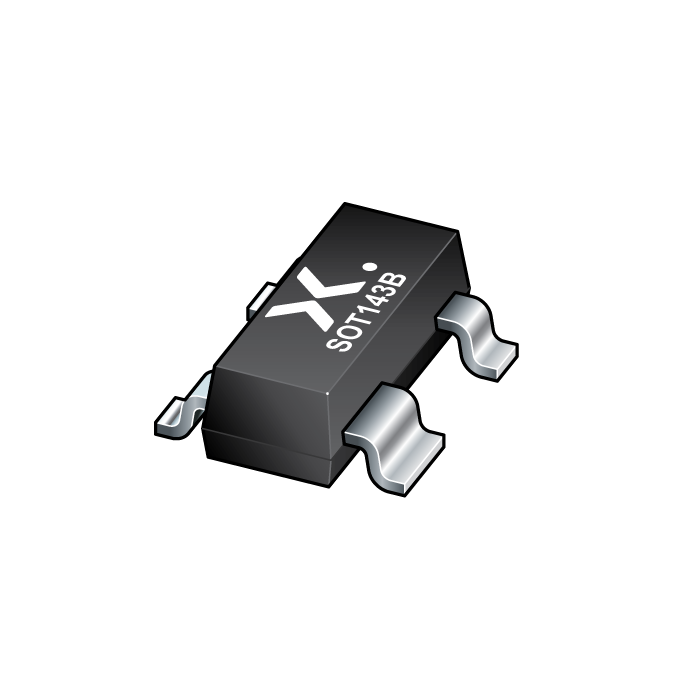

The image is for reference only
Please refer to the product specifications
-
SKU:
PESD2ETHX-QR
-
Short Description:
Q - Ultra low capacitance double rail-to-rail ESD protection diode
-
Description:
Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT143B Surface-Mounted Device (SMD) plastic package.
The device is designed to protect two high-speed data lines or high-frequency signal lines from the damage caused by ESD and other transients.
The device integrates two ultra low capacitance rail-to-rail diodes and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available.
- Datasheet:
Features
ESD protection of two high-speed data lines
Ultra low capacitance: Cd = 1 pF
IEC 61000-4-2 up to 8 kV
Very low reverse current
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
100BASE-T1 / OPEN Alliance BroadR-Reach automotive Ethernet
Low-Voltage Differential Signaling (LVDS) automotive
USB 2.0 automotive
