SKU:
PESD3V3L2UM,315
-
Date Code:
2514+
-
Short Description:
Low capacitance double ESD protection diode
-
Description:

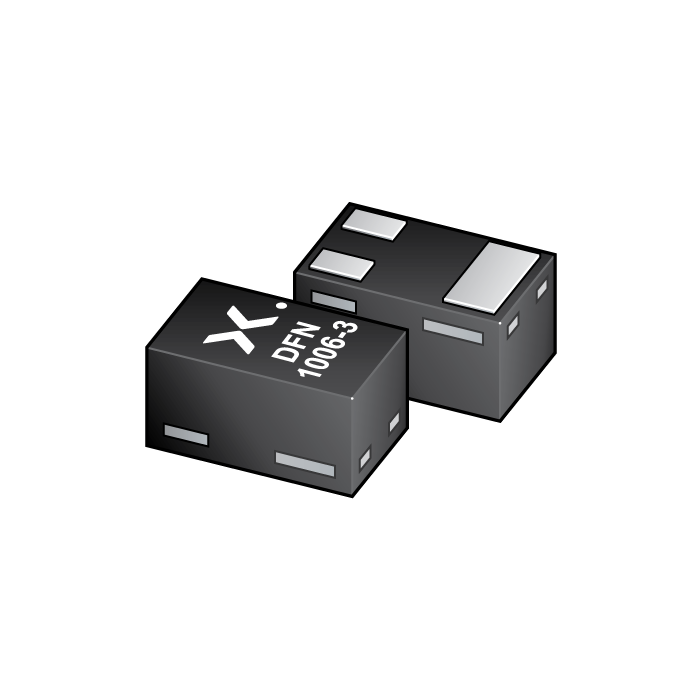

Low capacitance ESD protection diode in a three pad SOT883 leadless ultra small plastic package designed to protect up to two transmission or data lines from ElectroStatic Discharge (ESD) damage.
- Datasheet:
Features
Uni-directional ESD protection of two lines or bi-directional ESD protection of one line
Reverse standoff voltage 3.3 and 5 V
Low diode capacitance
Ultra low leakage current
Leadless ultra small SOT883 surface mount package (1 x 0.6 x 0.5 mm)
Board space 1.17 mm² (approx. 10pct of SOT23)
ESD protection >15 kV
IEC 61000-4-2; level 4 (ESD); 15 kV (air) or 8 kV (contact).
AEC-Q101 qualified
Applications
Cellular handsets and accessories
Portable electronics
Computers and peripherals
Communication systems
Audio and video equipment.
