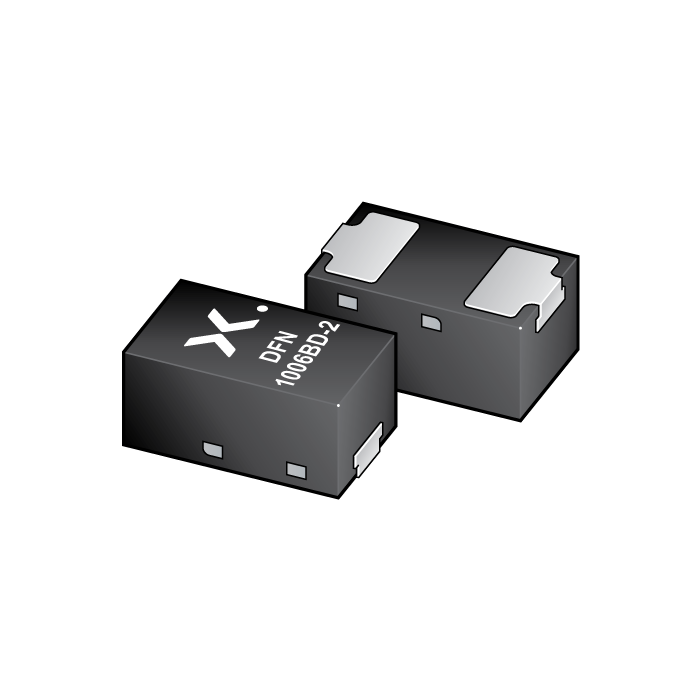

The image is for reference only
Please refer to the product specifications
-
SKU:
PESD5V0C1ULS-QYL
-
Date Code:
2342+
-
Short Description:
Q - Extremely low clamping unidirectional ESD protection diode
-
Description:
Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device is housed in a small leadless DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks. The device is designed to protect one automotive in-vehicle network bus line from the damage caused by ESD and other transients.
- Datasheet:
Features
Unidirectional ESD protection of one line
Ultra low capacitance: Cd < 0.6 pF
ESD protection starting from 15 kV (IEC 61000-4-2; ISO10605)
Deep snap-back combined with dynamic resistance of 0.3 Ohm
DFN1006BD-2 package with side-wettable flanks
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
ESD protection for In-vehicle network lines in automotive environments
Ultra high-speed data lines such as USB 3.2 or HDMI 2.0
Low-Voltage Differential Signaling (LVDS) automotive
Automotive A/V monitors, display and cameras
