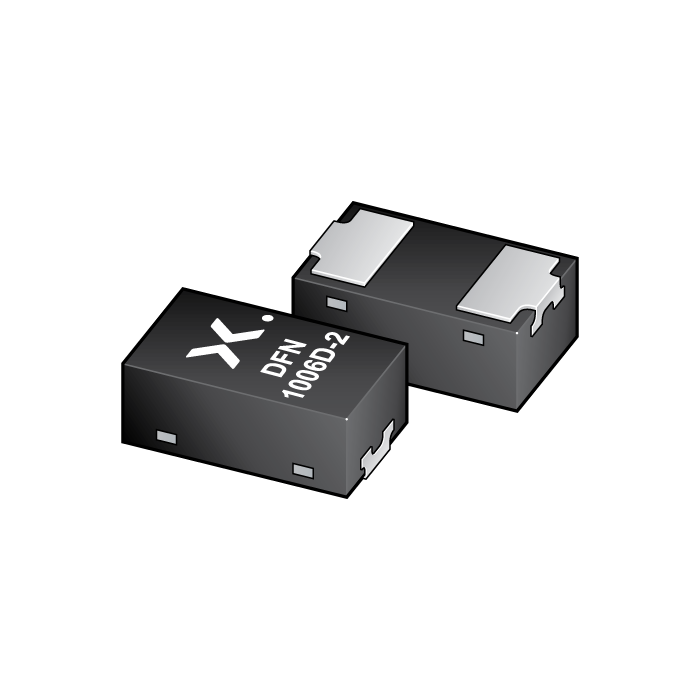

The image is for reference only
Please refer to the product specifications
-
SKU:
PESD5V0S1BLD-QYL
-
Short Description:
Q - Bidirectional ESD protection diode
-
Description:
Bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.
The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- Datasheet:
Features
Bidirectional ESD protection of one line
Ultra small SMD plastic package
Solderable side pads
Package height typ. 0.37 mm
Low clamping voltage: VCL = 14 V
ESD protection up to 30 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPP = 12 A
Max. peak pulse power: PPPM = 130W
Ultra low leakage current: IRM = 5 nA
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
Communication systems
Portable electronics
