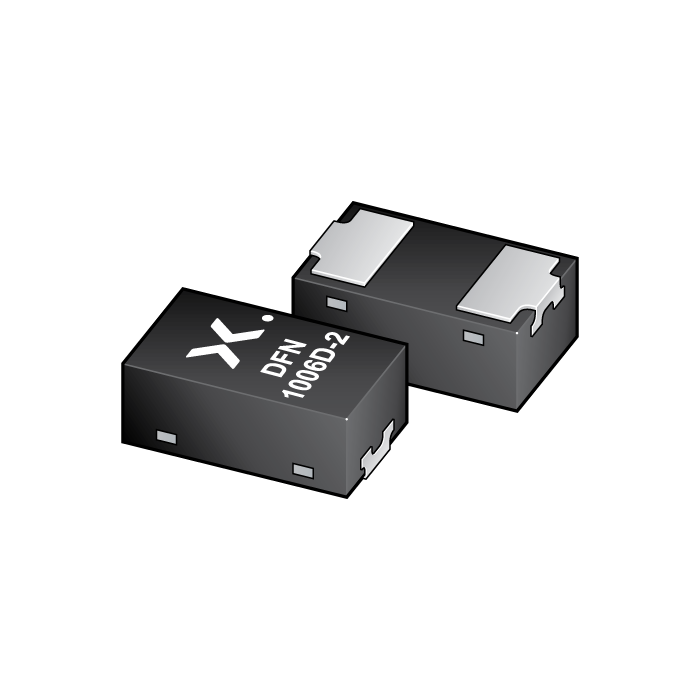

The image is for reference only
Please refer to the product specifications
-
SKU:
PESD5V0U1BLD-QYL
-
Short Description:
Q - Ultra low capacitance bidirectional ESD protection diode
-
Description:
Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- Datasheet:
Features
Bidirectional ESD protection of one line
Ultra small SMD plastic package
Solderable side pads
Package height typ. 0.37 mm
Ultra low diode capacitance Cd = 2.9 pF
ESD protection up to 10 kV
IEC 61000-4-2; level 4 (ESD)
Ultra low leakage current: IRM = 5 nA
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
High-speed data lines
Communication systems
Portable electronics
