PESD5V0V1BCSF

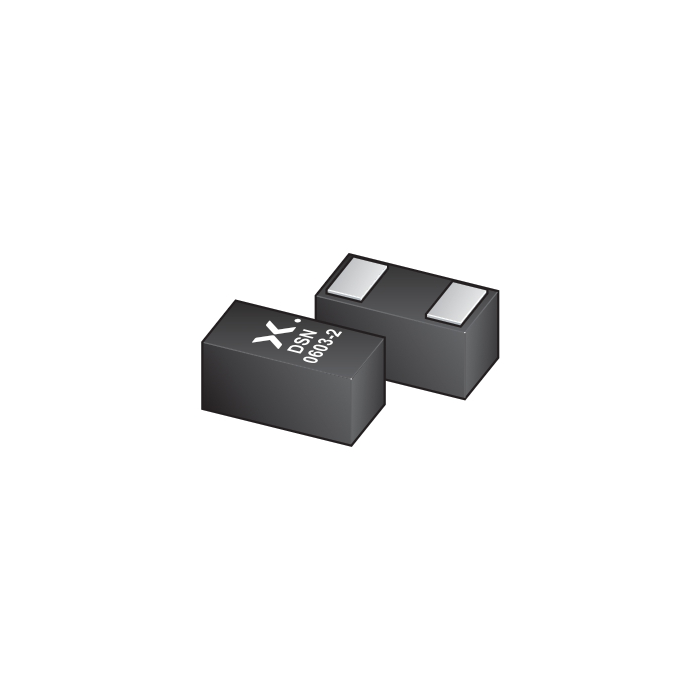

The image is for reference only
Please refer to the product specifications
PESD5V0V1BCSF
-
SKU:
PESD5V0V1BCSF,315
-
Short Description:
Ultra low profile bidirectional very low capacitance ESD protection diode
-
Description:
Very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a SOD962 leadless ultra small Surface-Mounted Device (SMD) package designed to protect one signal line from the damage caused by ESD and other transients.
- Datasheet:
Stock: 612000
Features
Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)
Bidirectional ESD protection of one line
Very low diode capacitance Cd = 5.3 pF
ESD protection up to ±20 kV according to IEC 61000-4-2
Ultra small SMD package
Symmetrical breakdown voltage
Applications
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
Datasheet
