SKU:
PESD5V0V1BLSYL
-
Short Description:
Very low capacitance bidirectional ESD protection diode
-
Description:

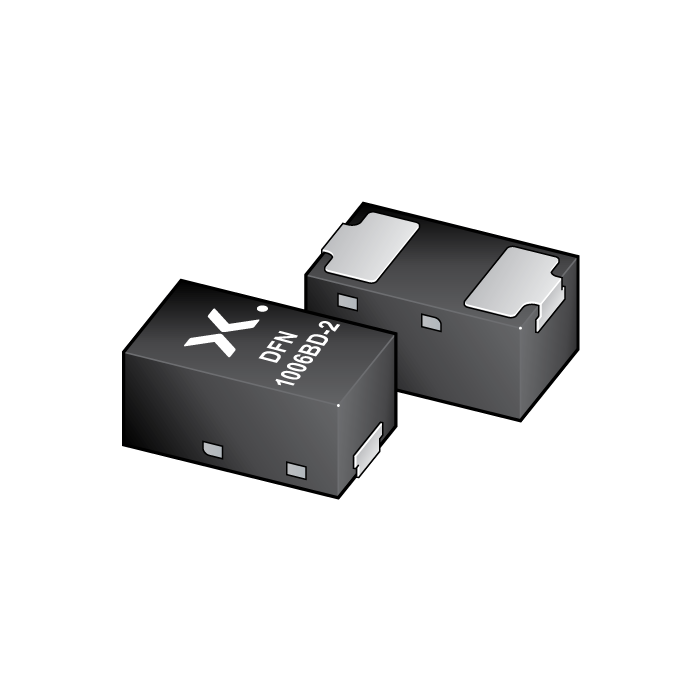

Very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a leadless ultra small DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks (SWF).
- Datasheet:
Features
Bidirectional ESD protection of one line
Ultra small SMD plastic package
Side wettable flanks
Very low diode capacitance: Cd = 11 pF
Low clamping voltage: VCL = 12.5 V
Ultra low leakage current: IRM typ. < 1 nA
ESD protection up to 30 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPPM = 4.8 A
AEC-Q101 qualified
Applications
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
SIM card protection
Communication systems
Portable electronics
