SKU:
PESD5V0X1ULD,315
-
Short Description:
Ultra low capacitance unidirectional ESD protection diode
-
Description:
Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.

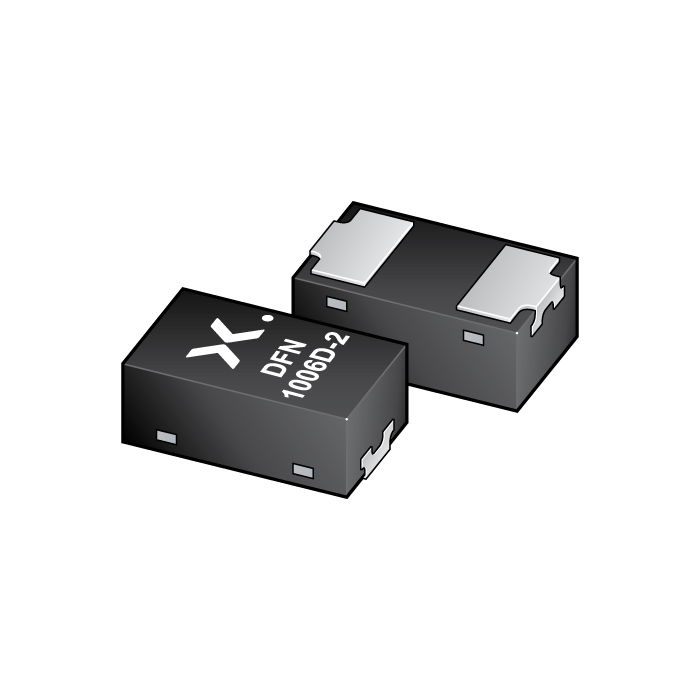

The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
The combination of extremely low capacitance and ultra low clamping voltage makes the device ideal for high-speed data line protection applications.
- Datasheet:
Features
ESD protection of one line
Ultra low diode capacitance Cd = 0.95 pF
Ultra low clamping voltage: VCL = 8 V
Ultra low leakage current: IRM = 1 nA
ESD protection up to 8 kV
IEC 61000-4-2; level 4 (ESD)
Ultra small SMD plastic package
Solderable tin-plated side pads
Applications
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
10/100/1000 Mbit/s Ethernet
Communication systems
Portable electronics
SIM card protection
USB, High-Definition Multimedia Interface (HDMI), FireWire
High-speed data lines
