vp_PESD5V0X2UAM
The image is for reference only
Please refer to the product specifications
vp_PESD5V0X2UAM
-
SKU:
PESD5V0X2UAM-QYL
-
Short Description:
Q - Ultra low capacitance unidirectional double ESD protection diode
-
Description:

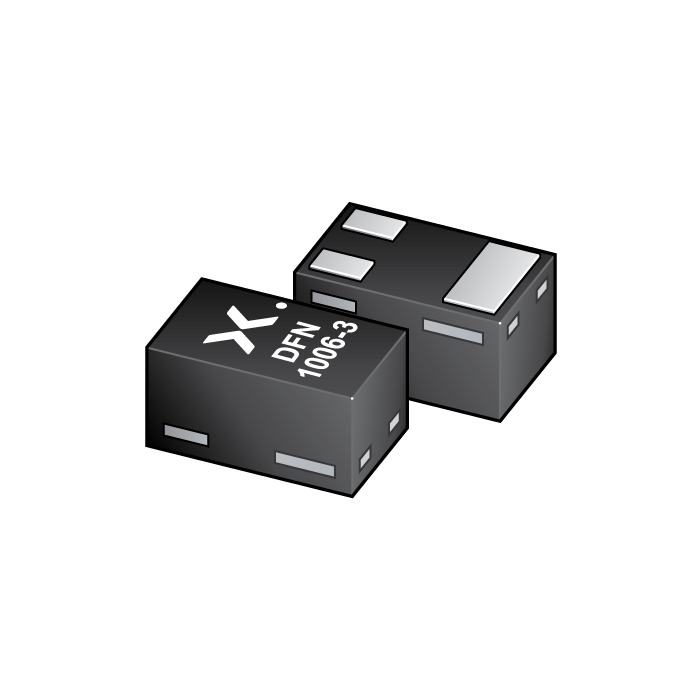

Ultra low capacitance unidirectional double ElectroStatic Discharge (ESD) protection diode in a DFN1006-3 (SOT883) leadless ultra small Surface-Mounted Device (SMD) plastic package, designed to protect up to two signal lines from the damage caused by ESD and other transients.
- Datasheet:
Stock: 99969999
Features
Ultra low diode capacitance: Cd = 0.80 pF
ESD protection up to 15 kV; IEC61000-4-2
IPPM = 2.5 A; IEC 61000-4-5 (surge)
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
High-speed data lines
Portable electronics
Communication systems
Computers and peripherals
Datasheet
